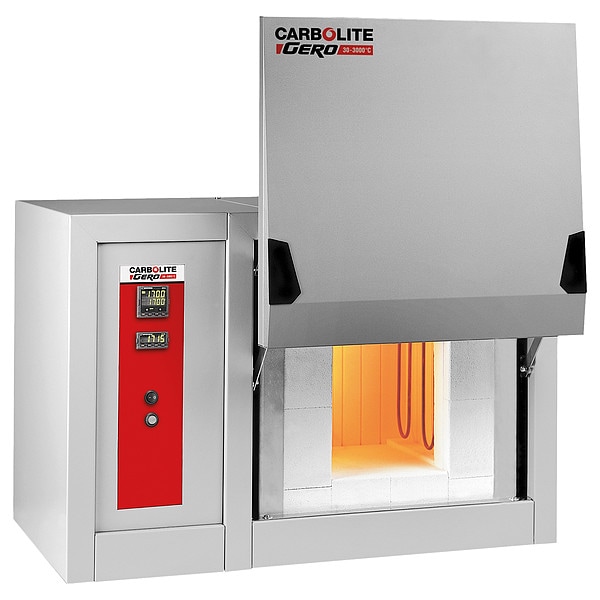

High Temp Box Furnace 1700C 5L 208/240V

  • Zoro #: G0122523
  • Mfr #: HTF1705-230SN
  • Programmable: Yes
  • Temp. Range (F): 3092 Degrees
  • Chamber Width: 5.9 in
See full product details
This item ships free.

Carbolite #HTF1705-230SN Specifications

  • Zoro #: G0122523
  • Mfr #: HTF1705-230SN
Programmable: Yes Temp. Range (F): 3092 Degrees
Chamber Width: 5.9 in Power Consumption: 4200 Watts
Chamber Height: 6.22 in Power Requirement: 208/240V, 50/60 Hz, 3-Phase
Capacity (Cu.-Ft.): 0.177 Includes: Programmable and Over-Temperature Controllers, RS 232 Communications Port
Housing Material: Zinc Plated Mild Steel Inside Usable Dimensions: 6.25"H x 6"W x 8.75"D
Thermostat: 3216P1 Programmable Controller, Type B Thermocouple Overall Depth: 25.5 in
Manufacturers Warranty Length: 2 yr Door Material: Refratory Ceramic
Capacity (ML): 5,000 Chamber Depth: 8.85 in
Temp. Range (C): 1700 Degrees Convection Type: Natural Gravity
Temp. Range: Up to 1700 Degrees C Number of Doors: 1
Hz: 60 Item: Box Furnace
Temp. Uniformity: +/-5 Degrees C Chamber Material: Refratory Ceramic
Overall Dimensions: 22.25"H x 32.50"W x 25.50"D Preheat Time: 50 min
Material: Molybdenum Discilicide Heating Elements Overall Height: 22.25 in
Standards: CE Voltage: 220-240
Overall Width: 32.5 in Watts: 1,600 W
Special Features: Vertical Lift Door, 50 Minute Heat-Up Time, Fan To Cool Outer Case Country of Origin (subject to change): United Kingdom
Feedback Help us improve our product information


Box Furnace, Convection Type Natural Gravity, Temp. Range (C) 1700 Degrees , Temp. Range (F) 3092 Degrees , Overall Height 22.25 in, Overall Width 32.5 in, Overall Depth 25.5 in, Chamber Height 6.22 in, Chamber Width 5.9 in, Chamber Depth 8.85 in, Hz 60, Voltage 220-240, Watts 1,600 W, Capacity (Cu.-Ft.) 0.177, Capacity (ML) 5,000, Programmable Yes, Temp. Uniformity +/-5 Degrees C, Preheat Time 50 min, Chamber Material Refratory Ceramic, Door Material Refratory Ceramic
