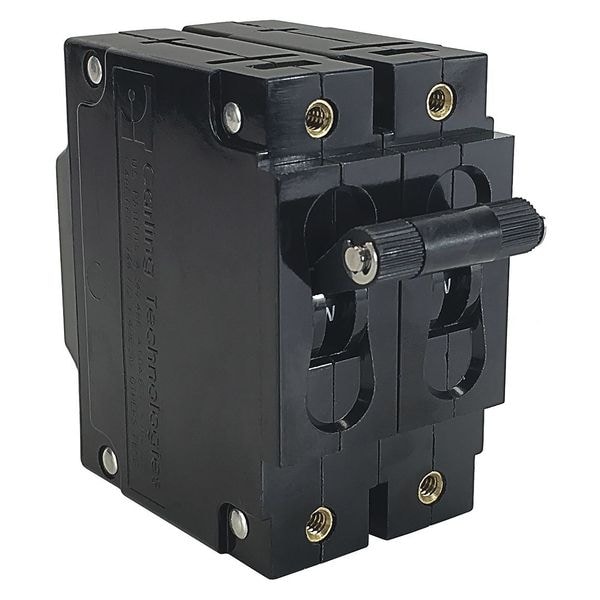

Circuit Breaker, C Series, 50A, 2 Pole, 250V AC, 1.5kA at 120/240V AC, C Curve
Mfr # CA2-B0-34-650-121-D
Zoro # G3908387
CAD Available
product price:Â $43.99
/eaKey Features
CAD Drawing
Series
C
AC Voltage Rating
250V AC
Circuit Breaker Type
Magnetic
Phase
1
Circuit Breaker Actuator
Toggle
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
CA2-B0-34-650-121-D
Zoro #
G3908387
UPC #
-
Country of Origin
Mexico
Dimensions
Width
1.52 in
Depth
2.52 in
Height
2.56 in
Max. Wire Size
Not Specified
Panel Cutout Size
2.062 in x 1.520 in
Max. Panel Thickness
0.1 in
Mounting Hole Thread Size
#6-32
Length
2.56 in
Description
Panel Mount Circuit Breaker, Amps 50 A, AC Voltage Rating 250V AC, Terminal Connection #10-32 Stud, DC Voltage Rating 80V DC, Magnetic, Number of Poles 2, Circuit Breaker Actuator Toggle, Max. AIR Rating 1.5kA at 120/240V AC, Curve Type Medium, Phase Single, Mounting Type Threaded Insert, Actuator Color Black, Actuator Legend I/O, On/Off, Panel Cutout Size 2.062 in x 1.520 in, Max. Panel Thickness 0.1 in, Mounting Hole Thread Size #6-32, Max. Wire Size Not Specified, Length 2.56 in
