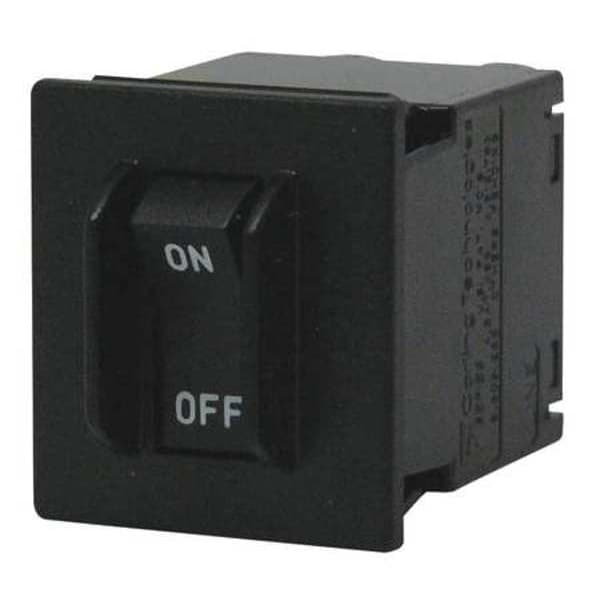

Circuit Breaker, M Series, 7.5A, 2 Pole, 250V AC, 1.5kA at 120V AC, C Curve
Mfr # MA2-B-34-475-1-A16-B-E
Zoro # G4109533
CAD Available
product price:Â $30.69
/eaKey Features
CAD Drawing
Series
M
AC Voltage Rating
250V AC
Circuit Breaker Type
Magnetic
Phase
1
Circuit Breaker Actuator
Toggle
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
MA2-B-34-475-1-A16-B-E
Zoro #
G4109533
UPC #
-
Country of Origin
Mexico
Dimensions
Width
1.39 in
Depth
1.90 in
Height
1.56 in
Max. Wire Size
Not Specified
Max. Panel Thickness
0.1 in
Panel Cutout Size
1.139 in x 1.420 in
Length
1.56 in
Description
Panel Mount Circuit Breaker, Amps 7.5 A, AC Voltage Rating 250V AC, Terminal Connection 1/4 in Tab, DC Voltage Rating 32V DC, Magnetic, Number of Poles 2, Circuit Breaker Actuator Rocker, Max. AIR Rating Not Rated, Curve Type Medium, Phase Single, Mounting Type Snap-In, Actuator Color White, Actuator Legend I/O, On/Off, Panel Cutout Size 1.139 in x 1.420 in, Max. Panel Thickness 0.1 in, Max. Wire Size Not Specified, Length 1.56 in, Width 1.39 in, Depth 1.9 in, Min. Operating Temp. -40 Degrees F
