Shop CARLING TECHNOLOGIES

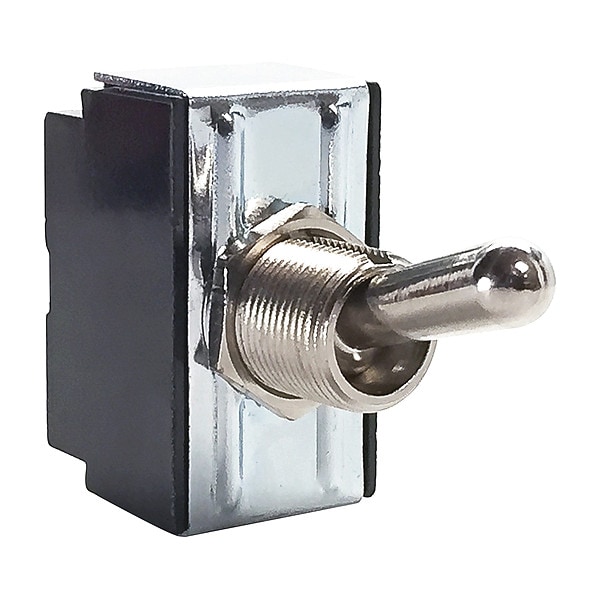

Toggle Switch, DPDT, 6 Connections, On/On, 3/4 hp, 10A at 250V AC, 15A at 125V AC

  • Mfr # 2GL54-73
  • Zoro # G2112887
product price:
$
12.15
/ea

Key Features

Switch Function
On/On
Contact Form
DPDT
HP
3/4 hp
Actuator Style
Bat
Amps
10A @ 250VAC, 15A @ 125VAC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
2GL54-73
Zoro #
G2112887
UPC #
-
Country of Origin
Mexico
Switch Function
On/On
Contact Form
DPDT
HP
3/4 hp
Actuator Style
Bat
Amps
10A @ 250VAC, 15A @ 125VAC
Number of Connections
6
Terminals
Screw
Operating Temp. Range
32 Degrees to 185 Degrees F
AC Contact Rating
10 A @ 250 V, 15 A @ 125 V
Mounting Hole
0.50 in dia
Item
Toggle Switch
Includes
Hex Nut, Ring Nut
IP Rating
Not Rated
DC Contact Rating
Not Rated
Product Type
Toggle Switch
Series
G
Switch Function Configuration
On/On
Number of Positions
2
Operating Temperature - Minimum
32 Degrees F
Number of Poles
2
Horsepower
3/4 hp
Actuator Material
Metal
Operating Temperature - Maximum
185 Degrees F
Terminal Connection Type
Screw Terminals
Features
Not Sealed
Operator Illumination Style
Non-Illuminated
NEMA Enclosure Rating
No Enclosure

Dimensions

Stem Length
0.47 in
Actuator Length
0.68 in
Stem Dia. and Thread Size
15/32-32 UNS-2A x 0.5 in dia
Stem Thread Size
6-32 NC-2
Overall Height
1.57 in
Overall Width
0.75 in
Stem Diameter
0.5 in
Overall Depth
1.31 in
Mounting Hole Diameter
0.5 in
Fits Chest Size
Not Sealed

Description

Toggle Switch, Contact Form DPDT, Number of Connections 6, Switch Function On/On, AC Contact Rating 10 A @ 250 V, 15 A @ 125 V, HP 3/4 hp, Terminals Screw, Mounting Hole 0.50 in dia, DC Contact Rating Not Rated, Actuator Style Bat, Actuator Length 0.68 in, Stem Length 0.47 in, Stem Dia. and Thread Size 15/32-32 UNS-2A x 0.5 in dia, Operating Temp. Range 32 Degrees to 185 Degrees F, Includes Hex Nut, Ring Nut
