Shop CARLING TECHNOLOGIES

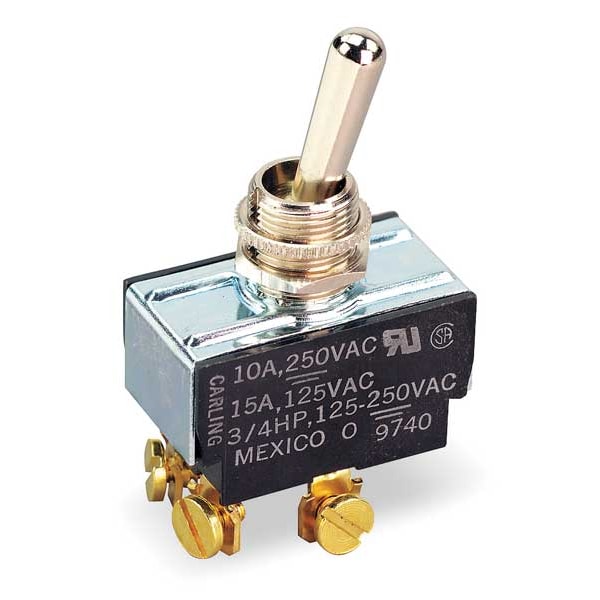

Toggle Switch, DPST, 4 Connections, On/Off, 3/4 hp, 10A at 250V AC, 15A at 125V AC

  • Mfr # 2GK54-73
  • Zoro # G1902731
product price:
$
8.49
/ea

Key Features

Switch Function
On/Off
Contact Form
DPST
HP
3/4 hp
Actuator Style
Bat
Amps
10A @ 250VAC, 15A @ 125VAC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2GK54-73
Zoro #
G1902731
UPC #
-
Country of Origin
Mexico

Dimensions

Stem Length
0.47 in
Actuator Length
0.68 in
Stem Dia. and Thread Size
15/32-32 UNS-2A x 0.5 in dia
Stem Thread Size
15/32-32 UNS
Overall Depth
1.31 in
Stem Diameter
0.5 in
Overall Height
1.57 in
Mounting Hole Diameter
0.5 in
Overall Width
0.75 in
Fits Chest Size
Not Sealed

Details

Switch Function
On/Off
Contact Form
DPST
HP
3/4 hp
Actuator Style
Bat
Amps
10A @ 250VAC, 15A @ 125VAC
Number of Connections
4
Terminals
Screw
Item
Toggle Switch
Operating Temp. Range
32 Degrees to 185 Degrees F
AC Contact Rating
10 A @ 250 V, 15 A @ 125 V
Mounting Hole
0.50 in dia
DC Contact Rating
Not Rated
IP Rating
Not Rated
Includes
Hex Nut, Ring Nut
Product Type
Toggle Switch
Series
G
Actuator Material
Metal
Horsepower
3/4 hp
Features
Not Sealed
NEMA Enclosure Rating
No Enclosure
Number of Poles
2
Operating Temperature - Maximum
185 Degrees F
Switch Function Configuration
On/Off
Terminal Connection Type
Screw Terminals
Operating Temperature - Minimum
32 Degrees F
Operator Illumination Style
Non-Illuminated
Number of Positions
2

Description

Toggle Switch, Contact Form DPST, Number of Connections 4, Switch Function On/Off, AC Contact Rating 10 A @ 250 V, 15 A @ 125 V, HP 3/4 hp, Terminals Screw, Mounting Hole 0.50 in dia, DC Contact Rating Not Rated, Actuator Style Bat, Actuator Length 0.68 in, Stem Length 0.47 in, Stem Dia. and Thread Size 15/32-32 UNS-2A x 0.5 in dia, Operating Temp. Range 32 Degrees to 185 Degrees F, Includes Hex Nut, Ring Nut
