Shop CARLING TECHNOLOGIES

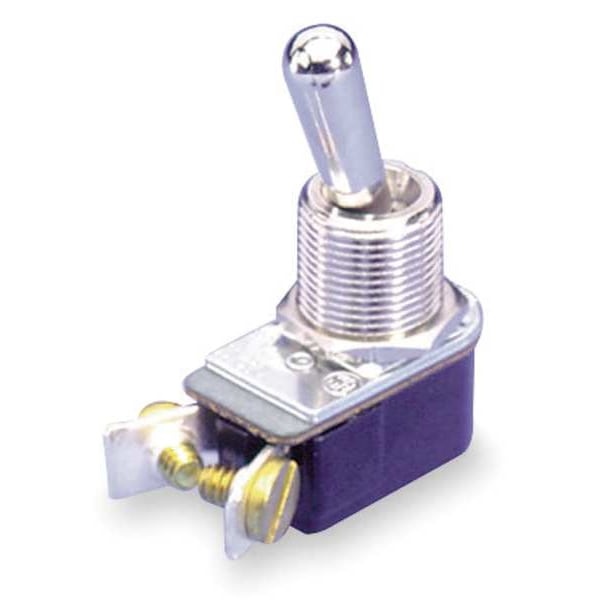

Toggle Switch, SPST, 2 Connections, On/Off, 3A at 250V AC, 6A at 125V AC

  • Mfr # 110-S-73

  • Zoro # G1748424

product price:  $7.15
/ea

Key Features

Switch Function
On/Off
Contact Form
SPST
Actuator Style
Bat
Amps
3A @ 250VAC/VDC, 6A @ 125VAC/VDC
Number of Connections
2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
110-S-73
Zoro #
G1748424
UPC #
-
Country of Origin
Mexico

Dimensions

Stem Length
0.47 in
Actuator Length
0.68 in
Stem Dia. and Thread Size
0.500 in
Overall Width
0.52 in
Mounting Hole Diameter
0.5 in
Stem Thread Size
15/32-32 UNS-2A
Stem Diameter
0.5 in

Details

Switch Function
On/Off
Contact Form
SPST
Actuator Style
Bat
Amps
3A @ 250VAC/VDC, 6A @ 125VAC/VDC
Number of Connections
2
Terminals
Screw
Mounting Hole
0.50 in dia
Stem Color
Silver
Item
Toggle Switch
AC Contact Rating
3 A @ 250 V, 6 A @ 125 V
Actuator Color
Silver
Operating Temp. Range
0 Degrees to 150 Degrees F
DC Contact Rating
3 A @ 250 V, 6 A @ 125 V
IP Rating
Not Rated
Product Type
Toggle Switch
Series
110/216
Operating Temperature - Maximum
150 Degrees F
NEMA Enclosure Rating
No Enclosure
Number of Positions
3
Operating Temperature - Minimum
0 Degrees F
Switch Function Configuration
On/None/Off
Number of Poles
1
Features
Not Sealed
Terminal Connection Type
Screw Terminals
Metal Actuator Finish
Silver
Actuator Material
Metal
Operator Illumination Style
Non-Illuminated

Description

Toggle Switch, Contact Form SPST, Number of Connections 2, Switch Function On/Off, AC Contact Rating 3 A @ 250 V, 6 A @ 125 V, Terminals Screw, Mounting Hole 0.50 in dia, DC Contact Rating 3 A @ 250 V, 6 A @ 125 V, Actuator Style Bat, Actuator Length 0.68 in, Stem Length 0.47 in, Stem Dia. and Thread Size 0.500 in, Operating Temp. Range 0 Degrees to 150 Degrees F, Actuator Color Silver, Stem Color Silver
