Carlo Gavazzi

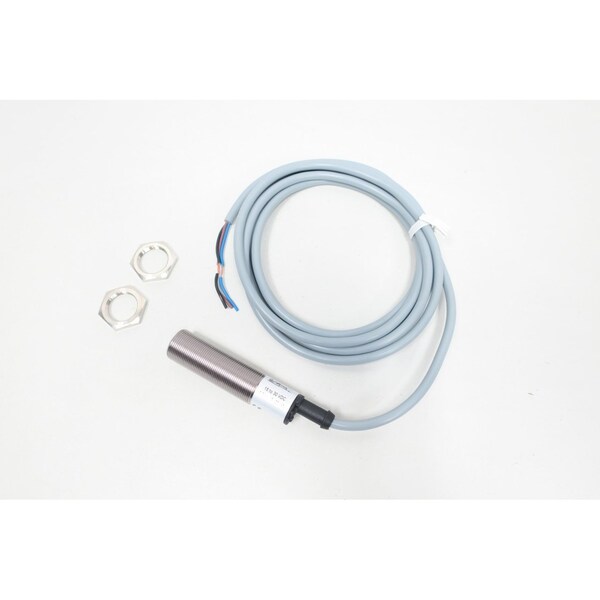

1530VDc Proximity Switch

original price: $309.47
4% off
new price: $294.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Transient voltage ≤2 kV/0.5 J (prepared)
  • No-load supply current (Io) ≤7 mA (no load)
  • Back Black thermoplastic polyester
  • Ripple ≤10%
  • Front Blue thermoplastic polyester
See all product information

Product Information

Details

Transient voltage ≤2 kV/0.5 J (prepared)
No-load supply current (Io) ≤7 mA (no load)
Back Black thermoplastic polyester
Ripple ≤10%
Front Blue thermoplastic polyester
Temperature drift ≤2µm/°C per mm
Protection Reverse polarity current limiter
Linearity ± 3% of full scale
Degree of protection IP 67 (Nema 1, 3, 4, 6, 13)
Rated operational volt. (UB) 15 to 30 VDC (ripple included)
Storage -20° to +70°C (-4° to +158°F)
Tightening Torque 17.5 Nm
Operating -15° to +65°C (+5° to +144°F)
CE-marking Yes
Power ON delay Safe operation after 1 s
Rate of rise ≥1 mm/ms
Rated operational current (Ie) 0 to 20 mA (R load: 0 to 500 âΩ) Max. 30 mA (current limiter)
Rated operational volt. (Ue) 17 to 27 VDC
Repeat accuracy (R) ≤1%
Assured operating dist. (Sa) 2 to 5 mm
Cable 2 m, 3 x 0.25 mm2 grey PVC, oil proof
Body Nickel-plated brass
Voltage (DC) 15 V-DC
