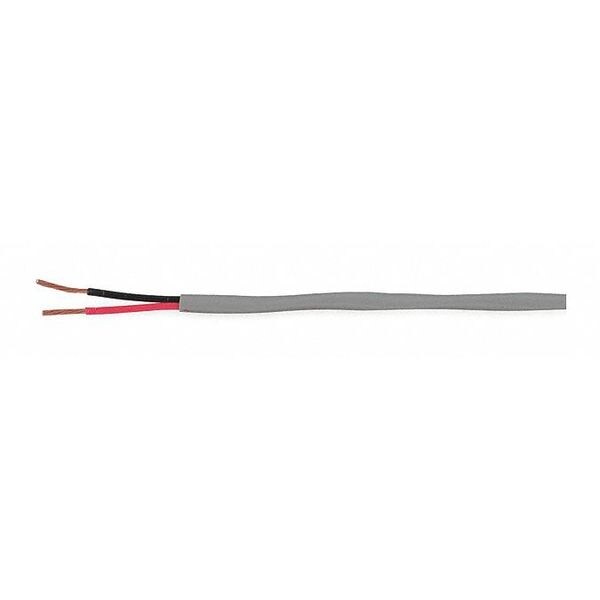

Carol 14 AWG 2 Conductor Stranded Multi-Conductor Cable GY E1052S.18.10

14 AWG 2 Conductor Stranded Multi-Conductor Cable GY (Discontinued)

  • Mfr # E1052S.18.10
  • Zoro # G5695575
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
E1052S.18.10
Zoro #
G5695575
UPC #
-
Country of Origin
United States

Dimensions

Length
500 ft.
Spool Length
500 ft
Nominal Outside Dia.
0.224 in
Conductor Size
14 AWG
Conductor Size - Data Cable
14 AWG

Details

Item
Power Limited and Fire Alarm Cable
Number of Conductors
2
Jacket Material
PVC
Jacket Color
Gray
Standards
NEC Article 725 Type CL3R (UL: 75 Degrees C, 150 V), NEC Article 760 Type FPLR (UL: 75 Degrees C, 300 V), RoHS Compliant Directive 2011/65/EU, Suitable for use in the State of California
Shielded
No
Insulation Material
Color-Coded S-R PVC
Plenum / Riser Rated
Riser Rated
Shielding Material
None
Solid / Stranded
Stranded
Shielded / Unshielded
Unshielded
Item - Data Cable
Power Limited and Fire Alarm Cable
Temp. Range
-4 Degrees to 167 Degrees F
Total Number of Conductors - Data Cable
2 (0 Pair)
NEC Article and Type
725 CL3R; 760 FPLR
Jacket Material - Wire and Cable
PVC
Cable Sub-Category
Multi-Conductor
Suggested Voltage Rating - Data Cable
300V
Fire Rating - Data Cable
Riser
Application
Power-limited Control Circuits, Intercom, Security, Audio, Background Music, Suggested Voltage Rating 300 volts
NEC Article
725 Type CL3R, 760 Type FPLR
Application - Communication Cable
Alarm Systems, Audio Systems, Control Systems
Package Type - Data Cable
Spool

Description

Power Limited and Fire Alarm Cable, Insulation Material Color-Coded S-R PVC, Jacket Color Gray, Jacket Material PVC, Shielded No, Shielding Material None, Number of Conductors 2, Application Power-limited Control Circuits, Intercom, Security, Audio, Background Music, Suggested Voltage Rating 300 volts, NEC Article and Type 725 CL3R; 760 FPLR
