Carol

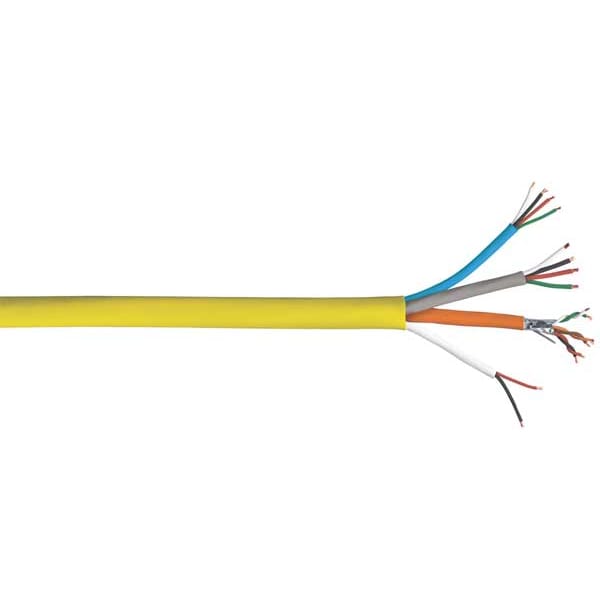

Comm Cable, Plenum, 22/16,500 Ft.

product price: $923.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Fire Rating - Data Cable Plenum
  • Shielded Unshielded
  • Number of Conductors 4
  • Total Number of Conductors - Data Cable 16 (3 Pair)
  • Conductor Size - Data Cable (12) 22 AWG, (4) 18 AWG
See all product information

Product Information

Dimensions

Conductor Size - Data Cable (12) 22 AWG, (4) 18 AWG
Length 500 ft.
Spool Length 500 ft
Nominal Outside Dia. 0.42 in
Conductor Size 18 and 22 AWG
Cable Length 500 ft
Outside Diameter 0.4 in

Details

Item Communication Cable
Item - Data Cable Communication Cable
Fire Rating - Data Cable Plenum
Shielded Unshielded
Number of Conductors 4
Total Number of Conductors - Data Cable 16 (3 Pair)
Solid / Stranded Stranded
Jacket Color Yellow
Application - Communication Cable Access Control, Alarm Systems
Jacket Material PVC
Suggested Voltage Rating - Data Cable 300 V
Application Access Control, Electronic Circuits, Control Systems, Communications, Alarm Systems
Insulation Material PVC
NEC Article 800
Cable Sub-Category Fire Alarm/Life Safety/Security
NEC Article and Type 800 CMP
Temp. Range 32 Degrees to 140 Degrees F
Jacket Material - Wire and Cable Flexguard(R) PVC
Package Type - Data Cable Spool
Standards cULus, NEC Article 800 CMP, RoHS Compliant
Plenum / Riser Rated Plenum Rated
Shielded / Unshielded Unshielded
Package Type Spool
Minimum Operating Temperature 32 Degrees F
Maximum Voltage Rating 300 V
Conductor Gauge (2) 22 AWG, (4) 18 AWG, (4) 22 AWG
Number of Pairs 3
Fire Rating Plenum
Maximum Operating Temperature 140 Degrees F
Product Type Communication Cable
Number of Strands 7
Solid/Stranded Stranded

Description

Communication Cable, Cable Length 500 ft, Fire Rating Plenum, Number of Strands 7, Conductor Gauge (2) 22 AWG, (4) 18 AWG, (4) 22 AWG, Insulation Material PVC, Jacket Color Yellow, Jacket Material PVC, Shielded Unshielded, Shielding Material Not Applicable, Solid/Stranded Stranded, Number of Conductors 4, Outside Diameter 0.4 in, Package Type Spool, Application Access Control, Electronic Circuits, Control Systems, Communications, Alarm Systems, Maximum Voltage Rating 300 V
