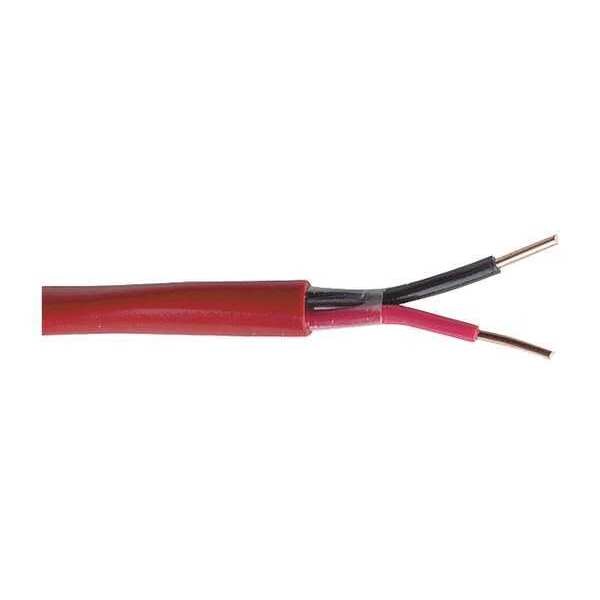

Comm Cable, Shielded, Riser, 18/2, 500 Ft.

product price: $148.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Fire Rating - Data Cable Riser
  • Shielded Shielded
  • Number of Conductors 2
  • Total Number of Conductors - Data Cable 2 (0 Pair)
  • Length 500 ft.
See all product information

Product Information

Dimensions

Length 500 ft.
Conductor Size - Data Cable 18 AWG
Nominal Outside Dia. 0.158 in
Spool Length 500 ft
Conductor Size 18 AWG
Cable Length 500 ft
Outside Diameter 0.2 in

Details

Item Power Limited, Fire Alarm, and Communication Cable
Item - Data Cable Communication Cable, Fire Alarm Cable, Power Limited Cable
Fire Rating - Data Cable Riser
Shielded Shielded
Number of Conductors 2
Total Number of Conductors - Data Cable 2 (0 Pair)
Solid / Stranded Solid
Jacket Color Red
Application - Communication Cable Alarm Systems, Audio Systems
Jacket Material PVC
Suggested Voltage Rating - Data Cable 300 V
NEC Article 760 Type FPLR, 725 Type CL3R, 800 Type CMR
Standards CE 2006/95/EC, NEC Article 760 FPL, UL 70,000 BTU Vertical Tray Flame Test, RoHS Compliant
Application Alarm Systems, Audio Systems
Package Type - Data Cable Spool
Jacket Material - Wire and Cable PVC
Cable Sub-Category Multi-Conductor
Plenum / Riser Rated Riser Rated
Shielded / Unshielded Shielded
Insulation Material PVC
Temp. Range -4 Degrees to 167 Degrees F
NEC Article and Type 725 CL3R, 760 FPLR, 800 CMR
Shielding Material Flexfoil Polyester Supported Aluminum Foil
Package Type Spool
Solid/Stranded Solid
Product Type Fire Alarm Cable
Number of Pairs 0
Conductor Gauge 18 AWG
Maximum Operating Temperature 167 Degrees F
Minimum Operating Temperature -4 Degrees F
Maximum Voltage Rating 300 V
Power Limited Power Limited
Fire Rating Riser

Description

Power Limited, Fire Alarm, and Communication Cable, Cable Length 500 ft, Fire Rating Riser, Number of Strands Not Applicable, Conductor Gauge 18 AWG, Insulation Material PVC, Jacket Color Red, Jacket Material PVC, Shielded Shielded, Shielding Material Flexfoil Polyester Supported Aluminum Foil, Solid/Stranded Solid, Number of Conductors 2, Outside Diameter 0.2 in, Package Type Spool, Application Alarm Systems, Audio Systems, Maximum Voltage Rating 300 V
