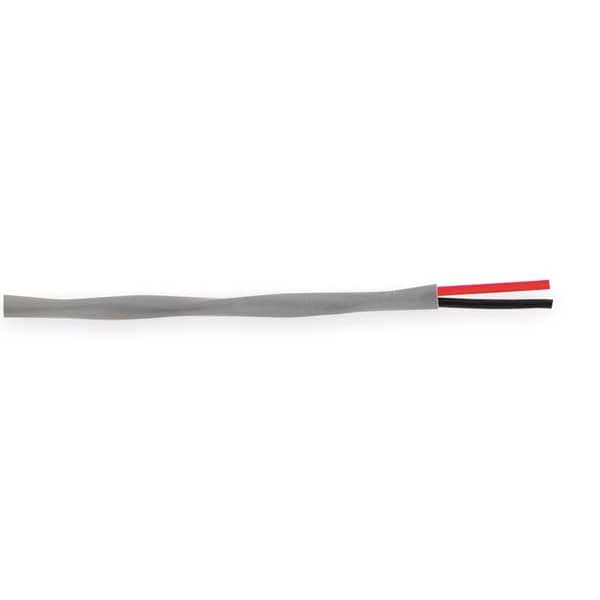

Comm Cable, Unshielded, 18/2, 500 Ft.

product price: $204.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Fire Rating - Data Cable Commercial
  • Shielded Unshielded
  • Number of Conductors 2
  • Total Number of Conductors - Data Cable 2 (0 Pair)
  • Length 500 ft.
See all product information

Product Information

Dimensions

Length 500 ft.
Conductor Size - Data Cable 18 AWG
Nominal Outside Dia. 0.19 in
Spool Length 500 ft
Conductor Size 18 AWG
Cable Length 500 ft
Outside Diameter 0.2 in

Details

Item Communication Cable
Item - Data Cable Communication Cable
Fire Rating - Data Cable Commercial
Shielded Unshielded
Number of Conductors 2
Total Number of Conductors - Data Cable 2 (0 Pair)
Solid / Stranded Stranded
Jacket Color Gray
Jacket Material PVC
Application - Communication Cable Audio Systems, Computer Systems, Control Systems
NEC Article 800, CM
Jacket Material - Wire and Cable PVC
NEC Article and Type 800 CM
Cable Sub-Category Multi-Conductor
Shielded / Unshielded Unshielded
Insulation Material PVC
Standards CE 2006/95/EC, CSA CMG, UL 70,000 BTU Vertical Tray Flame Test, CSA CMG Flame Test, RoHS Compliant, UL Style 2464, UL Style 2576
Package Type - Data Cable Spool
Application Audio Systems, Control Systems
Temp. Range -4 Degrees to 176 Degrees F
Package Type Spool
Maximum Capacitance 30.5 pf/ft
Conductor Gauge 18 AWG
Number of Strands 16
Fire Rating Commercial
Minimum Operating Temperature -4 Degrees F
Solid/Stranded Stranded
Number of Pairs 0
Product Type Communication Cable
Maximum Voltage Rating 300 V
Maximum Operating Temperature 176 Degrees F

Description

Communication Cable, Cable Length 500 ft, Fire Rating Commercial, Number of Strands 16, Conductor Gauge 18 AWG, Insulation Material PVC, Jacket Color Gray, Jacket Material PVC, Shielded Unshielded, Shielding Material Not Applicable, Solid/Stranded Stranded, Number of Conductors 2, Outside Diameter 0.2 in, Package Type Spool, Application Audio Systems, Control Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CM, Number of Pairs 0, Product Type Communication Cable
