This item is Discontinued.

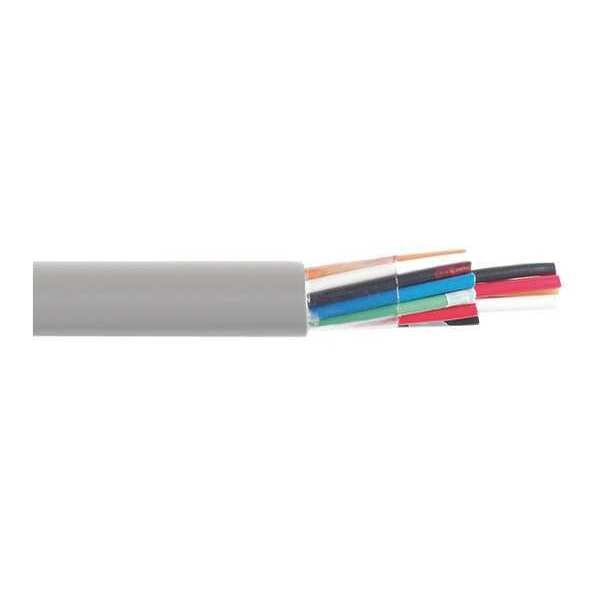

Carol Comm Cable, Unshielded, 18/19, 500 Ft. C2424A.38.10

Comm Cable, Unshielded, 18/19, 500 Ft. (Discontinued)

  • Mfr # C2424A.38.10
  • Zoro # G1411234
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C2424A.38.10
Zoro #
G1411234
UPC #
094701598058
Country of Origin
United States

Dimensions

Nominal Outside Dia.
0.469 in
Length
500 ft.
Conductor Size
18 AWG
Spool Length
500 ft
Conductor Size - Data Cable
18 AWG

Details

Item
Communication Cable
Jacket Color
Gray
Jacket Material
PVC
Number of Conductors
19
Solid/Stranded
Stranded
Shielding Material
None
NEC Article and Type
800 CM
Standards
NEC Article 800 Type CM (UL: 105 Degrees C), UL Style 2464 (UL: 80 Degrees C, 300 V, VW-1), UL Style 2576 (UL: 80 Degrees C, 150 V), CSA CMG (CSA: 60 Degrees C), CE: Low-Voltage Directive (LVD) 2006/95/EC, RoHS Compliant Directive 2011/65/EU, Designed to meet UL 70,000 BTU Vertical Tray Flame Test, Passes CSA CMG Flame Test
Item - Data Cable
Communication Cable
Jacket Material - Wire and Cable
PVC
Package Type - Data Cable
Reel in a Box
Application - Communication Cable
Audio Systems, Control Systems, Electronic Circuits
Shielded
No
Shielded / Unshielded
Unshielded
Fire Rating - Data Cable
Commercial
Application
Public Address Systems, Intercoms, Internal Telephones, Remote Control Circuits, Suitable for EIA RS-232 Applications, Suggested Voltage Rating 300 volts
NEC Article
800 Type CM
Suggested Voltage Rating - Data Cable
300V
Cable Sub-Category
Multi-Conductor
Total Number of Conductors - Data Cable
19 (0 Pair)
Insulation Material
Color-Coded PVC (UL 1007)
Temp. Range
-4 Degrees to 176 Degrees F

Description

Communication Cable, Insulation Material Color-Coded PVC (UL 1007), Jacket Color Gray, Jacket Material PVC, Shielded No, Shielding Material None, Number of Conductors 19, Application Public Address Systems, Intercoms, Internal Telephones, Remote Control Circuits, Suitable for EIA RS-232 Applications, Suggested Voltage Rating 300 volts, NEC Article and Type 800 CM
