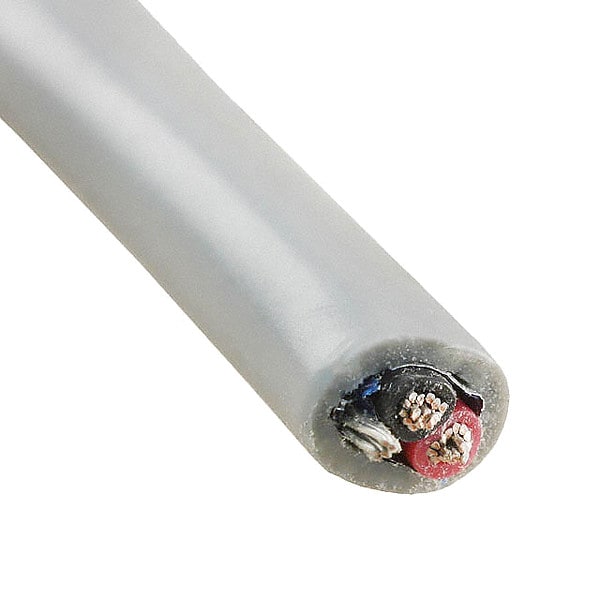

Communication Cable, 22 AWG, 50 ft L

  • Mfr # C0454A

  • Zoro # G610043593


product price: $167.99
/ea
Free Shipping & Returns

Key Features

Cable Length
50 ft
Number of Strands
16
Conductor Gauge
22 AWG
Fire Rating
Riser
Jacket Color
Gray
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C0454A
Zoro #
G610043593
UPC #
-
Country of Origin
United States

Dimensions

Cable Length
50 ft
Outside Diameter
0.2 in

Details

Item
Communication Cable
Number of Strands
16
Conductor Gauge
22 AWG
Fire Rating
Riser
Jacket Color
Gray
Jacket Material
PVC
Number of Conductors
2
Solid/Stranded
Stranded
Shielding Material
Aluminum Mylar Foil
Maximum Voltage Rating
300 V
NEC Article and Type
800 CM
Standards
NEC Article 725 (UL: 105 Degrees C, 300V), RoHS Compliant Directive 2002/95/EC, UL 70000 BTU Vertical Tray Flame Test
Insulation Material
PVC
Package Type
Spool
Shielded
Shielded
Application
Alarm Systems, Computer Systems, Communications, Control Systems, Audio Systems
Resistance Properties
UV Resistant, Weather Resistant
Maximum Operating Temperature
221 Degrees F
Power Limited
Power Limited
Product Type
Communication Cable
Maximum Capacitance
54.5 pf/ft (Capacitance Between Conductors); 98.0 pf/ft (Capacitance Between One Conductor and Other Conductors Connected to Shield)
Number of Pairs
1
Minimum Operating Temperature
-4 Degrees F

Description

Communication Cable, Cable Length 50 ft, Fire Rating Riser, Number of Strands 16, Conductor Gauge 22 AWG, Insulation Material PVC, Jacket Color Gray, Jacket Material PVC, Shielded Shielded, Shielding Material Aluminum Mylar Foil, Solid/Stranded Stranded, Number of Conductors 2, Outside Diameter 0.2 in, Package Type Spool, Application Alarm Systems, Computer Systems, Communications, Control Systems, Audio Systems, Maximum Voltage Rating 300 V, NEC Article and Type 800 CM, Number of Pairs 1
