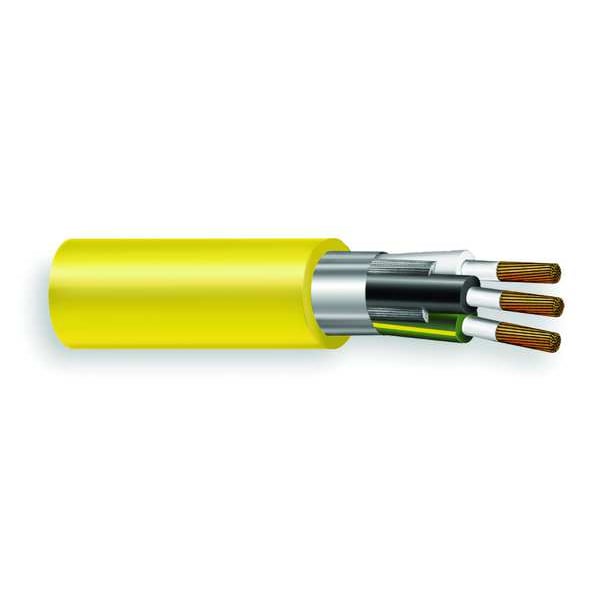

Carol Portable Cord, SOOW, 16 AWG, 3 C, Yellow, EPDM Rubber, Stranded, 600V, Indoor/Outdoor, 250 ft 02635.35.05 - main

Portable Cord, SOOW, 16 AWG, 3 C, Yellow, EPDM Rubber, Stranded, 600V, Indoor/Outdoor, 250 ft

  • Mfr # 02635.35.05

  • Zoro # G2932054

product price:  $399.99
/ea
Free Shipping & Returns

Key Features

Trade Designation
SOOW
Wire Size
16 AWG
Conductor Design
Stranded
Jacket Material
EPDM Rubber
Jacket Color
Yellow
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
02635.35.05
Zoro #
G2932054
UPC #
079407305056
Country of Origin
United States

Dimensions

Wire Size
16 AWG
Length
250 ft
Nominal Outside Dia.
0.4 in
Conductor Size
16 AWG
Outside Dia.
0.4 in
Overall Length
250 ft
Minimum Bend Radius
2 3/8 in
Nominal Outside Diameter
0.4 in

Details

Item
Portable Cord
Trade Designation
SOOW
Number of Conductors
3
Conductor Design
Stranded
Jacket Material
EPDM Rubber
Jacket Color
Yellow
Location
Indoor/Outdoor
Voltage
600V
Conductor Material
Tinned Copper
Standards
UL Flexible Cord/ CSA Flexible Cord/ MSHA Approved/ OSHA Acceptable/ RoHS Compliant
Features
Stranding for Maximum Flexibility, Sequential Footage Marking, Resists Heat, Flame, Water, Oils, Acids, Chemicals, Abrasion, Cuts, Crushing and Ozone, Cleanable Rubber Jacket, Reduced Scuffing, 2.37" Minimum Bend Radius
Max. Amps
13
Wire Color
Black, Green/Yellow, White
Temp. Rating
-58 to 221°F
Special Features
Scuffing Resistant, Abrasion Resistant, Acid Resistant, Chemical Resistant, Crushing Resistant, Cut Resistant, Flame Resistant, Heat Resistant, Oil Resistant, Ozone Resistant, Water Resistant, Sequential Footage Marking
Gauge/Conductor
16/3
Temperature Rating - Maximum Dry
221 Degrees F
Operating Temperature - Minimum
-58 Degrees F
Packaging
Spool
Series
Super Vu-Tron
Number of Strands
65
Conductor Insulation Color
Black, Green/Yellow, White
Number of Ground Conductors
0
Ampacity at Maximum Temperature
13 A

Description

Portable Cord, Number of Conductors 3, Wire Size 16 AWG, Trade Designation SOOW, Jacket Material EPDM, Wire Color Black, Green/Yellow, White, Jacket Color Yellow, Length 250 ft, Voltage 600 V, Nominal Outside Dia. 0.4 in
