Fan and Blower Motor, 14 1/2 " L
- Mfr # HD42AQ253
- Zoro # G622441271
product price:Â
$
776.99
/ea
Free Shipping & Returns
Key Features
Motor Shaft Rotation
CCWLE
Overall Length
14 1/2 in
Frame Size
48
Product Type
Fan and Blower Motor
Usable @ 208V
Usable at 208V
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- HD42AQ253
- Zoro #
- G622441271
- UPC #
- -
- Country of Origin
- Viet Nam
- Motor Shaft Rotation
- CCWLE
- Product Type
- Fan and Blower Motor
- Usable @ 208V
- Usable at 208V
- Insulation Class
- B
- Sub Application
- Fan/Blower
- Capacitor Required
- Capacitor Not Required
- Compatible Manufacturer Part Number
- FB4CNP025L00ECAA, FB4CNP025L00EEAA, FB4CNP025L05ECAA, FB4CNP025L05EEAA, FB4CNP025L10ECAA, FB4CNP025L10EEAA, FB4CNP025LC0ECAA, FB4CNP025LC0EEAA, PF4MNP025L00ECAA, PF4MNP025L00EEAA, PF4MNP030L00EDAA
- Bearing Type
- Ball
- Motor Thermal Protection
- Auto
- Motor Design
- ECM
- Phase
- Single
- Duty
- Continuous
- Application
- Fan/Blower
- Weight
- 10 lb
- Frequency
- 60 Hz
- Full Load Current @ 60 Hz
- 2.6 A
- Item
- Fan and Blower Motor
- Compatible Brand
- Carrier
- Nameplate Horsepower @ 60 Hz
- 1/3 hp
- Nameplate RPM @ 60 Hz
- 1,050 RPM
- Nameplate Voltage @ 60 Hz
- 208-230V AC
Dimensions
- Overall Length
- 14 1/2 in
- Frame Size
- 48
- Shaft Diameter
- 1/2 in
- Shaft Length
- 3 15/16 in
- Body Diameter
- 7.5 in
- Wire Rope Length
- 14 1/2 in
- Length
- 14 1/2 in
Description

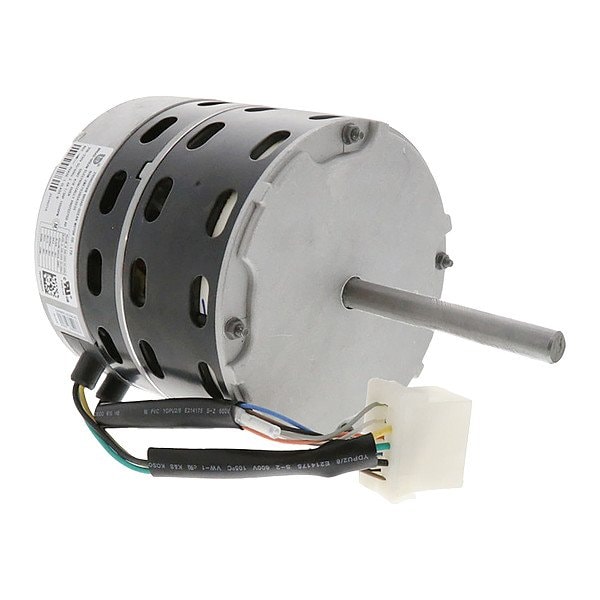

Fan and Blower Motor, Single Phase, Motor Design ECM, 1/3 hp HP, Nameplate RPM 1,050 RPM, Voltage 208-230V AC, Full Load Amps 2.6 A, 48 Frame, Usable @ 208V Usable at 208V, 60 Hz Hz, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Motor Shaft Rotation CCWLE, Motor Mounting Type Belly Band
