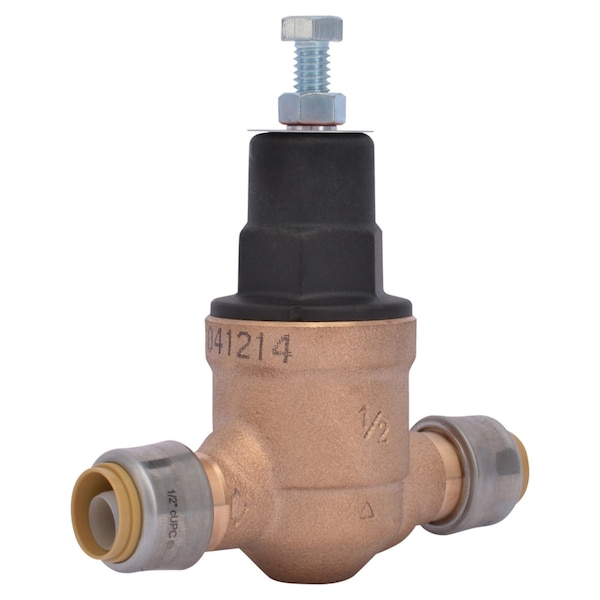

Cash Acme 1/2 in. Push to Connect Bronze Pressure Regulating Valve

Cash Acme pressure regulating valves are designed to reduce incoming water pressure to a safe pressure to protect plumbing components. They also helps to prevent pressure surges from entering the household from the main line. High pressure can cause damage to appliances and plumbing. A pressure regulator should be installed after the main line to help protect plumbing. The Cash Acme EB-45 is a half-cartridge based pressure reducing and regulating valve with a lead free bronze body. The valve resembles traditional regulators with a spring chamber and an adjusting screw but offers the high performance of a cartridge based valve. Fitted with the SharkBite Connection system the EB-45 can be installed using a push-fit connection that can be installed on any combination of Copper, CPVC, or PEX Pipe.

• • Solid lead-free bronze construction.
• • Factory set to regulate flow to a safe 45 psi, adjustable from 10 psi - 70 psi.
• • Direct SharkBite connections allow for a push-fit connection on any combination of copper, CPVC, PEX.
• • Integrated internal by-pass mechanism.
• • Certified to ASSE 1003 and CSA B356 and listed by ASSE and IAPMO (cUPC).
• • Push-fit design allows for easy installation with no glue or solder required.
