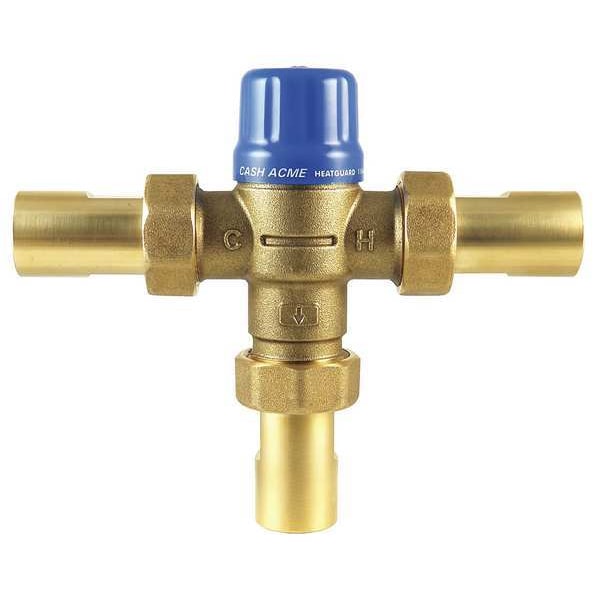

Thermostatic Mixing Valve, 3/4in., 230 psi
Mfr # 24511
Zoro # G6197922
product price:Â
$
135.99
/ea
Free Shipping & Returns
Key Features
Inlet Size
3/4 in
Outlet Type
NPT
Inlet Type
NPT
Max. Pressure
230 psi
Compliance
ASSE 1017, ASSE 1069, ASSE 1070, CSA B125.3, NSF 372, NSF 64
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 24511
- Zoro #
- G6197922
- UPC #
- 094726655538
- Country of Origin
- Australia
- Item
- Thermostatic Mixing Valve
- Outlet Type
- NPT
- Inlet Type
- NPT
- Max. Pressure
- 230 psi
- Compliance
- ASSE 1017, ASSE 1069, ASSE 1070, CSA B125.3, NSF 372, NSF 64
- Body Material
- Brass
- Temp. Range
- 85 Degrees to 130 Degrees F
- Standards
- ASSE, ASSE 1017, ASSE 1069, ASSE 1070, CSA, CSA B125.3, IAPMO, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61
- Valve Type
- Thermostatic
- Inlet Connection Type - Cold
- NPT
- Inlet Temperature - Minimum Cold
- 39 Degrees F
- Inlet Connection Type - Hot
- NPT
- Outlet Connection Type
- NPT
- Inlet Temperature - Maximum Cold
- 80 Degrees F
- Operating Temperature - Minimum Outlet
- 85 Degrees F
- Inlet Temperature - Maximum Hot
- 180 Degrees F
- Operating Temperature - Maximum Outlet
- 176 Degrees F
- Inlet Temperature - Minimum Hot
- 120 Degrees F
- Operating Pressure - Maximum
- 230 psi
- For Media
- Water
Description
Thermostatic Mixing Valve, Body Material Brass, Inlet Type NPT, Outlet Type NPT, Inlet Size 3/4 in, Outlet Size 3/4 in, Temp. Range 85 Degrees to 130 Degrees F, Max. Pressure 230 psi, Overall Height 2 3/16 in, Overall Width 5 5/8 in, Standards ASSE, ASSE 1017, ASSE 1069, ASSE 1070, CSA, CSA B125.3, IAPMO, NSF/ANSI/CAN 372, NSF/ANSI/CAN 61, Compliance ASSE 1017, ASSE 1069, ASSE 1070, CSA B125.3, NSF 372, NSF 64
