  11. Pressure Regulator, 1/4 In, 2 to 30 psi

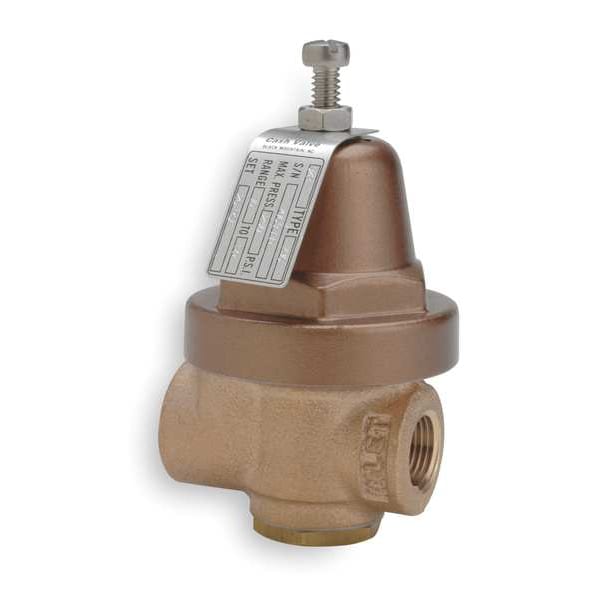

Cash Valve Pressure Regulator, 1/4 In, 2 to 30 psi A16-AWSASBBF01-D1-0016 - main

Pressure Regulator, 1/4 In, 2 to 30 psi

  • Mfr # A16-AWSASBBF01-D1-0016

  • Zoro # G0218705

product price: $237.99
/ea
Free Shipping & Returns

Key Features

Series
A-16
Body Material
Brass
Inlet Size
1/4 in
Outlet Size
1/4 in
Length
2 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
A16-AWSASBBF01-D1-0016
Zoro #
G0218705
UPC #
-
Country of Origin
United States

Dimensions

Inlet Size
1/4 in
Outlet Size
1/4 in
Length
2 1/4 in
Height
4 5/16 in
Pipe Size
1/4 in
Inlet Connection Size
1/4 in
Outlet Connection Size
1/4 in
Overall Height
4 5/16 in
Overall Width
2 1/4 in

Details

Item
Pressure Regulator
Series
A-16
Body Material
Brass
Max. Temp.
180 Degrees F
Max. Pressure
250 psi
Connection Type
FNPT x FNPT
Pressure Adjustment Range
2 to 30 psi
Application
Air, Water, Oil, Fluids and Gas, Drinking Fountains, Bubblers, Water Coolers, Humidifiers, Beverage Dispensers, Spray Paint Rigs, Air Tools
Operating Pressure - Maximum
250 psig
Pilot Adjustment - Minimum
2 psig
Pilot Adjustment - Maximum
30 psig
Inlet Connection Gender
Female
Outlet Connection Type
NPTF
Inlet Connection Type
NPTF
Factory Set Pressure
16 psig
Outlet Connection Gender
Female
Operating Temperature - Maximum
180 Degrees F
For Media
Air, Water

Description

Pressure Regulator, Series A-16, Body Material Brass, Inlet Size 1/4 in, Outlet Size 1/4 in, Length 2 1/4 in, Height 4 5/16 in, Pressure Adjustment Range 2 to 30 psi, Max. Temp. 180 Degrees F, Pipe Size 1/4 in, Max. Pressure 250 psi

Restrictions

This is a restricted item in the USA. It cannot be used for potable water applications.
