  5. CELESTION FTR154080F 15 in. 600 Watt Raw Frame Speaker

This item is Discontinued.

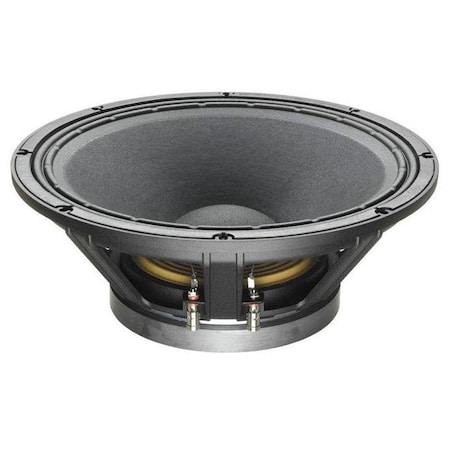

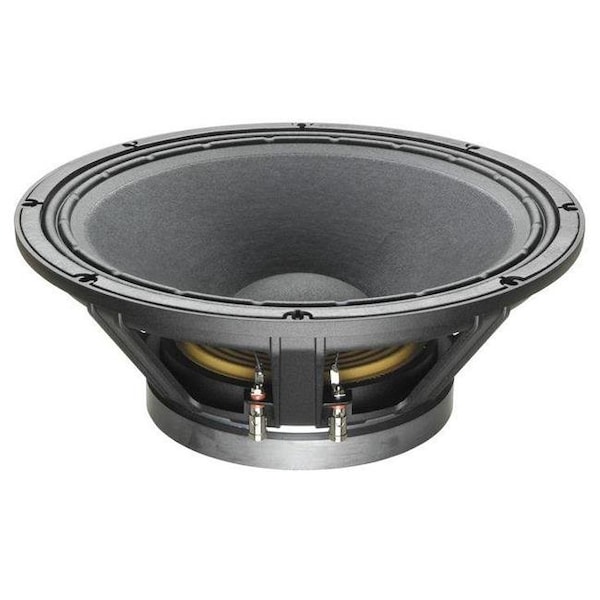

Celestion CELESTION FTR154080F 15 in. 600 Watt Raw Frame Speaker FTR154080F

CELESTION FTR154080F 15 in. 600 Watt Raw Frame Speaker (Discontinued)

  • Mfr # FTR154080F
  • Zoro # G203949769
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
FTR154080F
Zoro #
G203949769
UPC #
739894545853
Country of Origin
China

Dimensions

Diameter
15 in
Cutout Width
0.39 in
Voice Coil Winding Width
0.87 in
Voice Coil Dia.
4 in
Cutout Length
0.28 in

Details

Item
Speaker
Sensitivity (dB)
97 db
Watt (RMS)
600 W
Frequency Response
35 Hz to 3 kHz
Impedance
8 Ohm
Features
Flexirol technology for greater excursion control, Saturated gap technology for lower harmonic distortion, Specially treated weather-resistant cone
Material
Cloth
Chassis Type
Cast aluminium
Coil Material
Round Copper
Magnet Type
Ceramic

Description

  • 15" Ferrite woofer provides 600Wrms power handling (AES Standard) and 97dB sensitivity.
  • 4" High temperature Inside/Outside voice coil efficiently dissipates heat, preventing sensitivity loss through thermal compression.
  • FlexirolTM surround for greater excursion control.
  • Low frequency response, down to 35Hz.
  • Smart chassis design minimises acoustic distortion.
  • Specially treated weather-resistant cone.
    Specifications:
  • Nominal diameter: 381mm/15in.
  • Power rating1: 600Wrms.
  • Nominal impedance: 8O.
  • Sensitivity2: 97dB.
  • Frequency range: 35-3000Hz.
  • Voice coil diameter: 100mm/4in.
  • Chassis type: Cast Aluminium.
  • Magnet type: Ferrite.
  • Magnet weight: 3.1kg/110oz.
  • Coil material: Round copper.
  • Former material: Glass fibre.
  • Cone material: Glass loaded paper with weather-resistant impregnation.
  • Surround material: Cloth-sealed.
  • Suspension: Single.
  • Xmax3: 6mm/0.24".
  • Gap depth: 10mm/0.39".
  • Voice coil winding width: 22mm/0.87".

    • Restrictions
