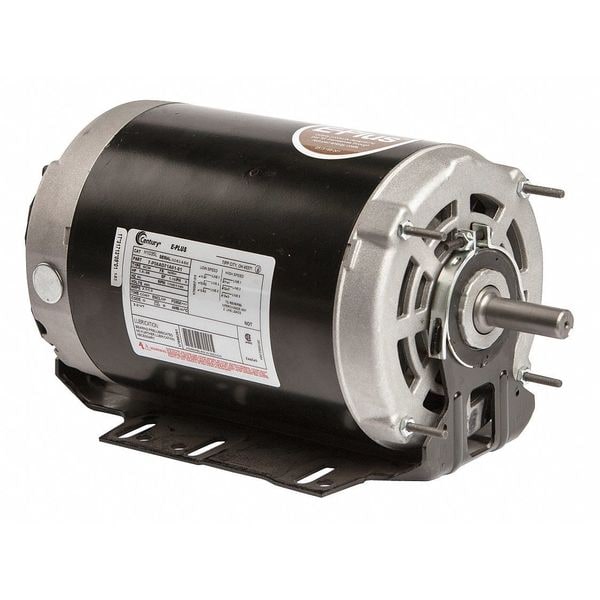

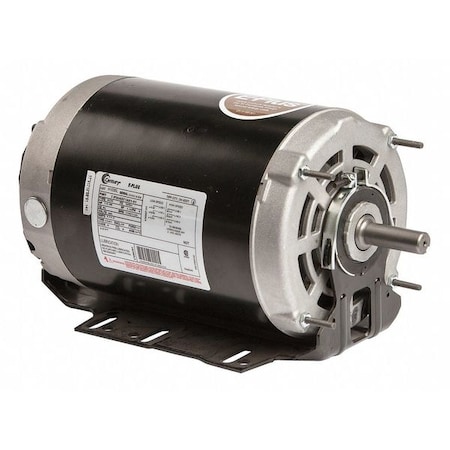

3-Phase Belt Drive Motor, 1 1/2, 11/16 HP, 56H Frame, 208-230/460 Voltage, No. of Speeds: 2 (Discontinued)
- Mfr # H1035L
- Zoro # G3958742
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
H1035L
Zoro #
G3958742
UPC #
786674056498
Country of Origin
Mexico
Dimensions
Shaft Dia.
5/8 in
Length Less Shaft
10 3/4 in
Overall Length
12 11/16 in
Shaft Length
1 15/16 in
Body Dia.
6 1/2 in
Description
Belt Drive Motor, Three Phase, Motor Design 3-Phase, 1 1/2, 11/16 HP, Nameplate RPM 1,745/1,140, No. of Speeds 2, Voltage 208-230/460, 2.1/1.3 A Full Load Amps, 56H Frame, Usable @ 208V No, Usable @ 200V No, 60 Hz Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 104 Degrees F, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Frame Material Steel, Shaft Dia. 5/8 in
