Century

3-Phase Belt Drive Motor, 1, 1/2 HP, 56 Frame, 200-230V AC Voltage, 1,725/1,140 Nameplate RPM

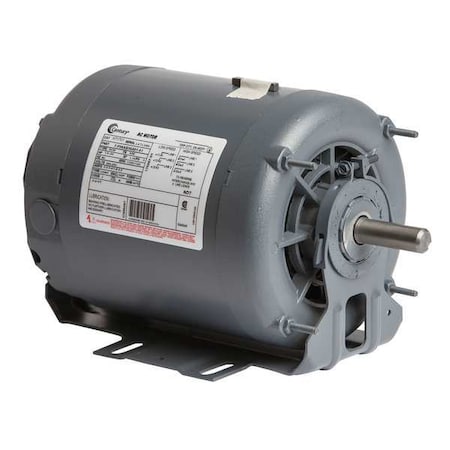

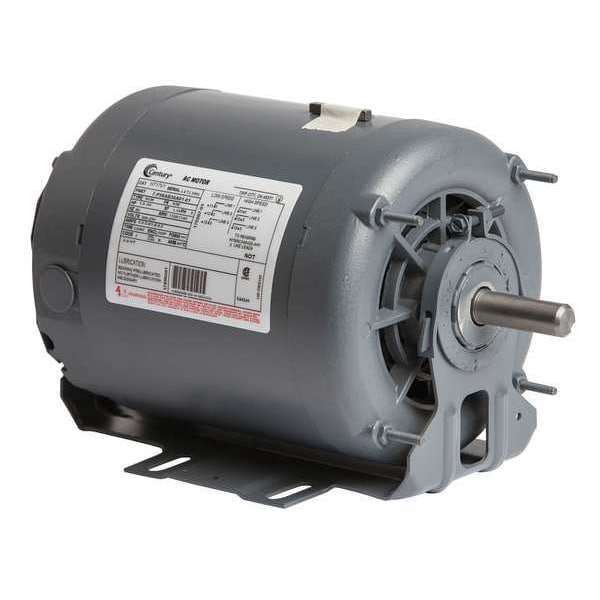

Century 3-Phase Belt Drive Motor,  1,  1/2 HP,  56 Frame,  200-230V AC Voltage,  1,725/1,140 Nameplate RPM H717V1
Hover or click to zoom Tap to zoom
Key Features
  • Item: Belt Drive Motor
  • Motor Design: 3-Phase
  • Motor Enclosure Design: Open Dripproof
  • HP: 1, 1/2
  • No. of Speeds: 2
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725/1,140
  • Voltage: 200-230V AC
See full product details
$439.15

Sign in for Free Shipping Over $50
Sign in for Free Shipping on $50+ Orders
No-Hassle, 30-Day Returns
30-Day Returns
125 U.S.-Based Customer Service Agents
125 U.S.-Based Customer Service Agents

Century #H717V1 Specifications

  • Item: Belt Drive Motor
  • Motor Design: 3-Phase
  • Motor Enclosure Design: Open Dripproof
  • HP: 1, 1/2
  • No. of Speeds: 2
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725/1,140
  • Voltage: 200-230V AC
  • Frame: 56
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 5/8 in
  • Motor Thermal Protection: None
  • Motor Service Factor: 1.15
  • Voltage Compatibility: 115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
  • Phase: Three
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Shaft Length: 1 15/16 in
  • Ring to Ring Center: 8 5/8 in
  • Resilient Ring Dia.: 2 1/2 in
  • Frame Material: Steel
  • Footnotes: 26
  • Nominal Efficiency: 70 %
  • Body Dia.: 6 1/2 in
  • Motor Bearings: Ball
  • Length Less Shaft: 9 1/8 in
  • Hz: 60
  • Motor Shaft Rotation: CW/CCW
  • Mounting Stud Pattern: 4 1/8 in x 4 1/8 in
  • Max. Ambient Temp.: 40 Degrees C
  • Ins. Class: B
  • Overall Length: 11 1/16 in
  • Duty: Continuous
  • Standards: CSA, UL Recognized
  • Motor Mounting Position: All Angle
  • Motor Frame Material: Steel
  • Full Load Amps: 3.4/2.2
  • Motor Shaft Design: Keyed
  • Usable @ 208V: Yes
  • Weight: 25 lb
  • Extended Thru-Bolts: Yes
  • Duty Cycle: Continuous
  • Usable @ 200V: Yes
  • Country of Origin (subject to change): Mexico

Description

Belt Drive Motor, Three Phase, Motor Design 3-Phase, 1, 1/2 HP, Nameplate RPM 1,725/1,140, No. of Speeds 2, Voltage 200-230V AC, 3.4/2.2 Full Load Amps, 56 Frame, Usable @ 208V Yes, Usable @ 200V Yes, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle, Motor Frame Material Steel
