3-Phase Belt Drive Motor, 1/4 HP, 48Y Frame, 208-230/460V AC Voltage, 1725 Nameplate RPM

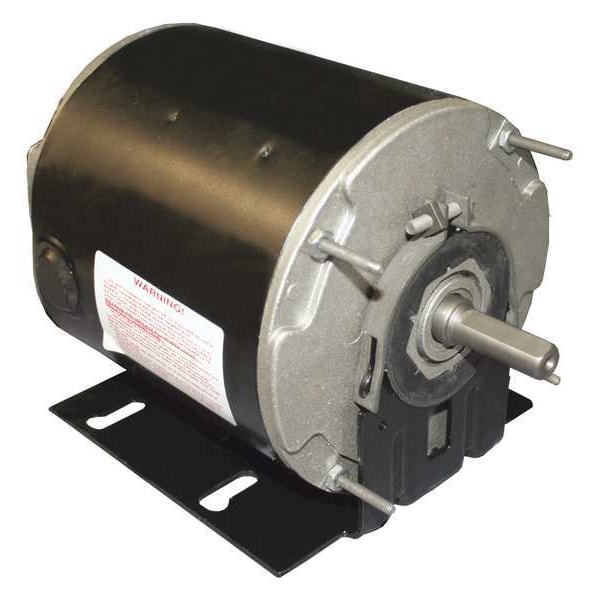

Century 3-Phase Belt Drive Motor,  1/4 HP,  48Y Frame,  208-230/460V AC Voltage,  1725 Nameplate RPM H1025A
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$219.45
  • Item: Belt Drive Motor
  • Motor Design: 3-Phase
  • Motor Enclosure Design: Totally Enclosed Air-Over
See full product details
This item ships free.
Total: $219.45

Century #H1025A Specifications

  • Item: Belt Drive Motor
  • Motor Design: 3-Phase
  • Motor Enclosure Design: Totally Enclosed Air-Over
  • HP: 1/4
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1725
  • Voltage: 208-230/460V AC
  • Frame: 48Y
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 1/2 in
  • Motor Thermal Protection: None
  • Motor Service Factor: 1
  • Voltage Compatibility: 200-230/440V AC, 200-230/460V AC, 208-230/460V AC, 460V AC
  • Phase: Three
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Motor Frame Material: Steel
  • Body Dia.: 5 5/8 in
  • Mounting Stud Pattern: 3 5/8 in x 3 5/8 in
  • Resilient Ring Dia.: 2 1/4 in
  • Full Load Amps: 1.50-1.40/0.75
  • Duty: Continuous
  • Shaft Length: 2 in
  • Length Less Shaft: 6 3/8 in
  • Motor Mounting Position: All Angle
  • Overall Length: 8 3/8 in
  • Nominal Efficiency: 74.8 %
  • Ins. Class: B
  • Hz: 60
  • Max. Ambient Temp.: 40 Degrees C
  • Frame Material: Steel
  • Standards: CSA, UL Recognized
  • Motor Shaft Rotation: CW/CCW
  • Ring to Ring Center: 6 1/2 in
  • Motor Bearings: Ball
  • Footnotes: 26
  • Duty Cycle: Continuous
  • Extended Thru-Bolts: Yes
  • Usable @ 200V: No
  • Weight: 17 lb
  • Usable @ 208V: Yes
  • RPM @ 50Hz: 1425
  • Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

Belt Drive Motor, Three Phase, Motor Design 3-Phase, 1/4 HP, Nameplate RPM 1,725/1,425, No. of Speeds 2, Voltage 208-230/460V AC, 1.50-1.40/0.75 Full Load Amps, 48Y Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1, Motor Thermal Protection None, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle
