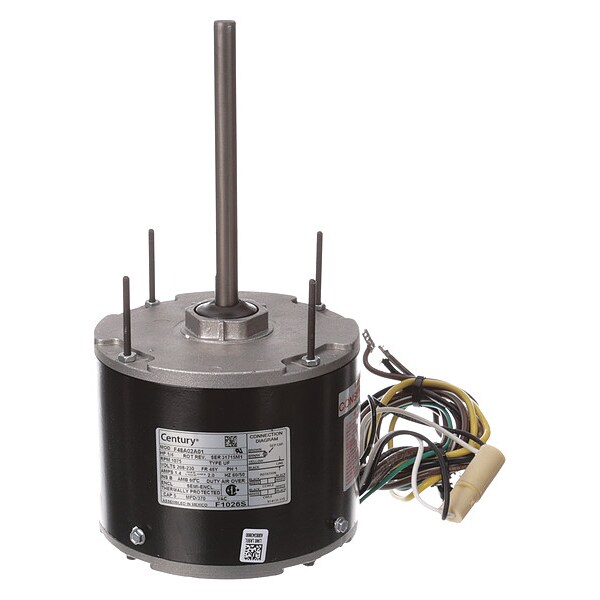

5-5/8in. Dia. Outdoor Fan Motor
Mfr # F1026S
Zoro # G0789656
product price: $183.99
/ea
Free Shipping & Returns
Key Features
Motor Design
Permanent Split Capacitor
HP
1/4
RPM Range
1,001-1,100
Nameplate RPM
1,075
Voltage
208-230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
F1026S
Zoro #
G0789656
UPC #
-
Country of Origin
Mexico
Dimensions
Stud Size
8-32
Overall Length
11 1/4 in
Length Less Shaft
4 13/16 in
Body Dia.
5 5/8 in
Shaft Dia.
1/2 in
Shaft Length
6 3/8 in
Lead Length
27 in
Description
Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.4 A Full Load Amps, 48Y Frame, Output Watts 190 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Stud, Motor Frame Material Steel, Motor Mounting Position All Angle
