Shop CENTURY

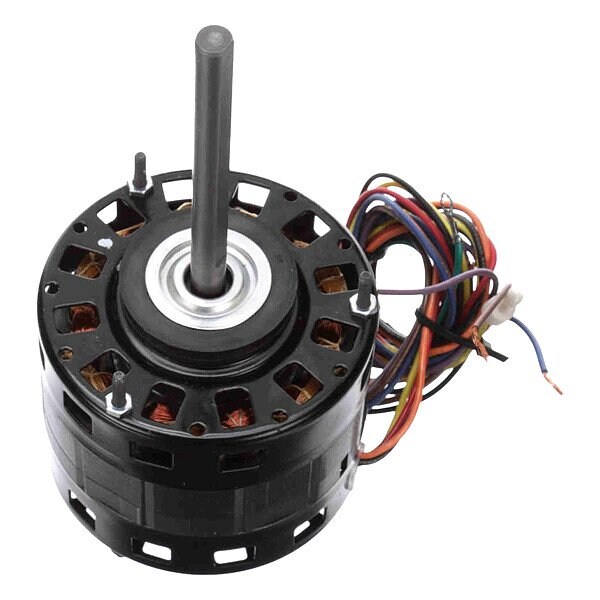

Fan and Blower Motor

  • Mfr # B6507A

  • Zoro # G215562475

product price:  $135.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
HP
1/10, 1/5, 1/6
RPM Range
1,001-1,100
Nameplate RPM
1,075
Voltage
230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
B6507A
Zoro #
G215562475
UPC #
786674077585
Country of Origin
Mexico

Dimensions

Shaft Dia.
1/2 in
Shaft Length
5 1/2 in
Overall Length
10 5/32 in
Lead Length
36 in
Length Less Shaft
4 21/32 in
Body Dia.
5 in
Body Diameter
5 in
Mounting Stud Thread Size
#10-32
Shaft Diameter
1/2 in
Frame Size
42
Wire Rope Length
10 5/32 in

Details

Item
Fan and Blower Motor
Motor Design
Permanent Split Capacitor
HP
1/10, 1/5, 1/6
RPM Range
1,001-1,100
Nameplate RPM
1,075
Voltage
230V AC
Frame
42
Motor Mounting Type
Ring
Phase
Single
Motor Enclosure Design
Open Air-Over
Standards
CSA
Motor Service Factor
1
No. of Speeds
3
Motor Frame Material
Rolled Steel
Includes
Shoulder Studs
Motor Thermal Protection
Auto
Motor Shaft Design
Flat
Capacitor Required
Capacitor Not Included
Includes Blade
Fan Included
Motor Shaft Rotation
CW/CCW
Full Load Amps
0.65 A, 0.85 A, 1.3 A
Motor Bearings
Ball
Weight
11.13 lb
Voltage Compatibility
230V AC
Motor Application
Air Conditioning Motor, Air Handler, Fan Coil, Furnace Blower
Motor Mounting Position
Horizontal
Ins. Class
B
Extended Thru-Bolts
Yes
Hz
60 Hz
Mounting Holes
#10-32
Max. Ambient Temp.
104 Degrees F
Motor Sub Application
Fan and Blower Motor
Shaft Design
Flat
Includes Fan
Fan Included
Number of Speeds
3
Drive Type
Direct Drive
Full Load Current @ 60 Hz
0.65 A, 0.85 A, 1.3 A
Frequency
60 Hz
Usable @ 208V
Not Usable at 208V
Wattage
150 W
Product Type
Fan and Blower Motor
Bearing Type
Ball
Motor Enclosure Type
Open Air Over
Nameplate Service Factor @ 60 Hz
1
Sub Application
General Purpose
Application
Fan/Blower
Mounting Position
Horizontal
Ambient Temperature - Maximum
40 Degrees C
Frame Material
Steel
Insulation Class
B

Description

Fan and Blower Motors
