  11. Brushless DC Motor, ECM, 1/10 HP, 1100 rpm
This item is Discontinued.

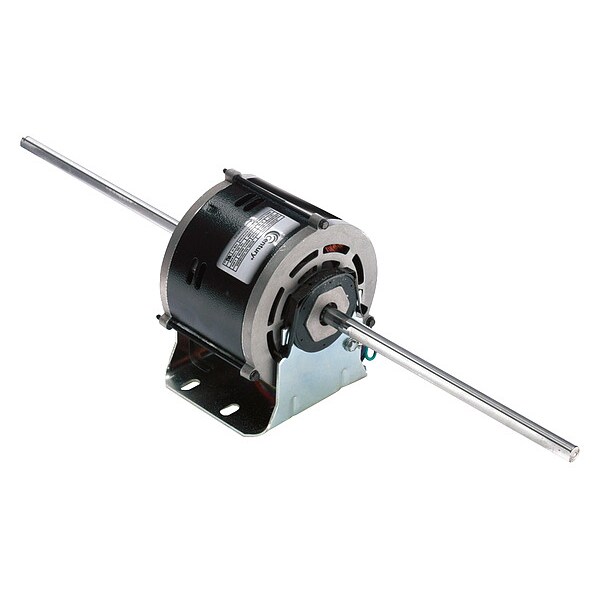

Century Brushless DC Motor, ECM, 1/10 HP, 1100 rpm CS89

Brushless DC Motor, ECM, 1/10 HP, 1100 rpm (Discontinued)

  • Mfr # CS89
  • Zoro # G3655364
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
CS89
Zoro #
G3655364
UPC #
-
Country of Origin
United States

Dimensions

Length Less Shaft
3 13/16 in
Shaft Length
9 5/16 in
Bolt Circle Dia.
2 1/2 in
Overall Length
22 3/8 in
Shaft Dia.
1/2 in
Body Dia.
5 in
Lead Length
54 in

Details

Motor Sub Application
Room Air Conditioner
HP
1/10
RPM Range
1,001-1,100
Voltage
120V AC
Phase
Single
Motor Shaft Rotation
CWLE
Motor Enclosure Design
Open Air-Over
Nameplate RPM
1,100/900/700
No. of Speeds
3
Full Load Amps
1.06 A
Motor Frame Material
Steel
Motor Mounting Type
Cradle Base
Max. Ambient Temp.
40 Degrees C
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Motor Bearings
Ball
Includes
Mounting Bracket
Frame
42
Motor Service Factor
1
Ins. Class
B
Plug Type
5-Wire, Standard
Hz
60 Hz
Duty
Continuous
Ambient Temperature
-40 to 40 Degrees C
Motor Mounting Position
All Angle
Frame Material
Steel
Motor Application
HVAC/R
Item
ECM Direct Drive Blower Motor
Motor Thermal Protection
Auto
Application
HVAC Systems
Standards
CSA, UL
Motor Shaft Design
Flat
Capacitor Required
No
Motor Design
ECM
Usable @ 208V
No
Number of Shafts
2
Duty Cycle
Continuous
Weight
11 lb
Mounting Holes
Welded Base/Bracket
Usable @ 200V
No
Stud Quantity
3
Frequency
60 Hz
Finish
Black
Number of Speeds
3
Mounting
Cradle Base

Description

ECM Direct Drive Blower Motor, Single Phase, Motor Design ECM, 1/10 HP, Nameplate RPM 1,100/900/700, No. of Speeds 3, Voltage 120V AC, Full Load Amps 1.06 A, 42 Frame, Usable @ 208V No, Usable @ 200V No, Motor Thermal Protection Auto, 60 Hz Hz, Motor Service Factor 1, Ins. Class B, Motor Shaft Rotation CWLE, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Lead Length 54 in, Motor Enclosure Design Open Air-Over, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle
