  11. Capacitor-Start Belt Drive Motor, 1 HP, 56Z Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM
Century

Capacitor-Start Belt Drive Motor, 1 HP, 56Z Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM

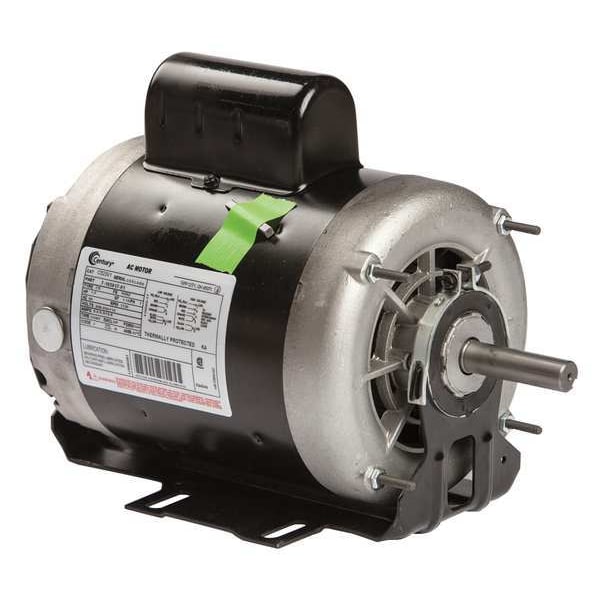

Century Capacitor-Start Belt Drive Motor, 1 HP, 56Z Frame, 115/208-230V AC Voltage, 1,725 Nameplate RPM C523V1
Tap to zoom
Hover or click to zoom
$485.18
  • Item: Belt Drive Motor
  • Motor Design: Capacitor-Start
  • Motor Enclosure Design: Open Dripproof
See full product details
This item ships free.
Total: $485.18

Century #C523V1 Specifications

  • Item: Belt Drive Motor
  • Motor Design: Capacitor-Start
  • Motor Enclosure Design: Open Dripproof
  • HP: 1
  • No. of Speeds: 1
  • RPM Range: 1,701-1,800
  • Nameplate RPM: 1,725
  • Voltage: 115/208-230V AC
  • Frame: 56Z
  • Motor Mounting Type: Cradle Base
  • Shaft Dia.: 5/8 in
  • Motor Thermal Protection: Auto
  • Motor Service Factor: 1.15
  • Voltage Compatibility: 115/200-230V AC, 115/208-230V AC, 115V AC, 208-230V AC
  • Phase: Single
  • Motor Application: HVAC/R
  • Motor Sub Application: Belt Drive Fan/Blower
  • Hz: 60
  • Mounting Stud Pattern: 4 1/8 in x 4 1/8 in
  • Ring to Ring Center: 9 1/16 in
  • Motor Frame Material: Steel
  • Motor Bearings: Ball
  • Footnotes: 26, 344
  • Motor Mounting Position: All Angle
  • Length Less Shaft: 9 1/2 in
  • Resilient Ring Dia.: 2 1/2 in
  • Standards: CSA, UL Recognized
  • Ins. Class: B
  • Max. Ambient Temp.: 40 Degrees C
  • Overall Length: 11 7/8 in
  • Nominal Efficiency: 69 %
  • Shaft Length: 2 3/8 in
  • Motor Shaft Rotation: CW/CCW
  • Frame Material: Rolled steel
  • Full Load Amps: 6.2-6.3/12.6
  • Duty: Continuous
  • Body Dia.: 6 1/2 in
  • Usable @ 200V: No
  • Weight: 32 lb
  • Usable @ 208V: Yes
  • Duty Cycle: Continuous
  • Country of Origin (subject to change): Mexico

Description

Belt Drive Motor, Single Phase, Motor Design Capacitor-Start, 1 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/208-230V AC, 6.2-6.3/12.6 Full Load Amps, 56Z Frame, Usable @ 208V Yes, Usable @ 200V No, 60 Hz, Motor Service Factor 1.15, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Duty Cycle Continuous, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Mounting Position All Angle
