Shop CENTURY

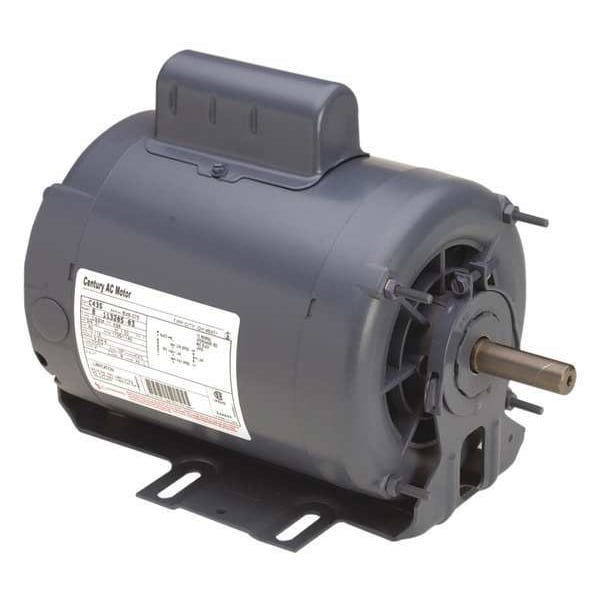

Capacitor-Start Belt Drive Motor, 3/4, 1/5 HP, 56 Frame, 115V AC Voltage, 1,725/1,140 Nameplate RPM

  • Mfr # C533
  • Zoro # G1417963
product price:
$
667.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
3/4, 1/5
No. of Speeds
2
RPM Range
1,701-1,800
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C533
Zoro #
G1417963
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Dia.
5/8 in
Resilient Ring Dia.
2 1/2 in
Body Dia.
6 1/2 in
Length Less Shaft
10 1/4 in
Overall Length
12 1/4 in
Shaft Length
2 in
Body Diameter
6.5 in
Resilient Ring Diameter
2 1/2 in
Frame Size
56
Shaft Diameter
5/8 in

Details

Item
Belt Drive Motor
Motor Design
Capacitor-Start
Motor Enclosure Design
Open Dripproof
HP
3/4, 1/5
No. of Speeds
2
RPM Range
1,701-1,800
Nameplate RPM
1,725/1,140
Voltage
115V AC
Frame
56
Motor Mounting Type
Cradle Base
Motor Thermal Protection
Auto
Motor Service Factor
1.25
Voltage Compatibility
115V AC, 208V AC to 230V AC, 115V AC, 230V AC, 115V AC, 120V AC, 240V AC, 120V AC
Phase
Single
Motor Application
HVAC/R
Motor Sub Application
Belt Drive Fan/Blower
Motor Frame Material
Steel
Standards
CSA, UL Recognized
Motor Mounting Position
All Angle
Hz
60 Hz
Max. Ambient Temp.
104 Degrees F
Nominal Efficiency
75 %
Ins. Class
B
Ring to Ring Center
9 13/16 in
Duty
Continuous
Full Load Amps
10.0/4.0 A
Footnotes
26
Frame Material
Steel
Motor Bearings
Ball
Motor Shaft Rotation
CW/CCW
Mounting Stud Pattern
4 1/8 in x 4 1/8 in
Weight
33 lb
Usable @ 208V
No
Usable @ 200V
No
Duty Cycle
Continuous
Mounting Position
All Angle
Bearing Type
Ball
Nameplate Service Factor @ 60 Hz
1.25
Product Type
Fan and Blower Motor
Insulation Class
B
Ambient Temperature - Maximum
40 Degrees C
Drive Type
Belt Drive
Motor Enclosure Type
Open Drip Proof
Frequency
60 Hz
Application
Fan/Blower
Full Load Current @ 60 Hz
10.0/4.0 A

Description

Fan and Blower Motor, Single Phase, Motor Design Capacitor-Start, 3/4 hp, 7/32 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 10.0/4.0 A Full Load Amps, 56 Frame, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.25, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Cradle Base
