Shop CENTURY

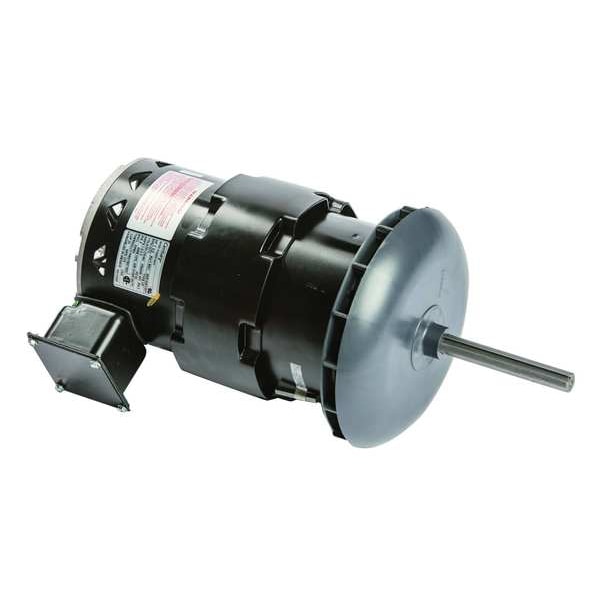

Condenser Fan Motor, 1-1/2HP, 1075rpm, 60Hz

  • Mfr # FC1156F

  • Zoro # G1072391

product price:
$
554.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
200-230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FC1156F
Zoro #
G1072391
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
11 7/8 in
Shaft Dia.
5/8 in
Overall Length
16 in
Body Dia.
5 5/8 in
Shaft Length
4 1/16 in
Lead Length
5 in
Frame Size
48Y
Body Diameter
5.6 in
Shaft Diameter
5/8 in
Wire Rope Length
16 in
Length
16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1 1/2
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
200-230/460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band
Duty
Continuous
Capacitor Required
Capacitor Not Included
Standards
CSA Certified, UL Recognized
Motor Sub Application
Condenser Fan
Motor Shaft Design
Keyed
Motor Thermal Protection
Auto
Motor Service Factor
1
Motor Application
HVAC/R
Item
Condenser Fan Motor
Voltage Compatibility
200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
Hz
60 Hz
Motor Mounting Position
Vertical Shaft Up
Ins. Class
F
Max. Ambient Temp.
70 Degrees C
Nameplate RPM
1,075
Motor Bearings
Ball
Features
Belly Band, Thermally Protected, Vertical Shaft Up
Full Load Amps
7.0/3.5 A
Conduit Box Location
Exterior
Weight
31 lb
Removable Base
Yes
Conduit Box Position
F1
Motor Frame Material
Steel
Usable @ 200V
Usable at 200V
Duty Cycle
Continuous
Output Watts
1100 W
Usable @ 208V
Usable at 208V
Mounting
Band
Insulation Class
F
Drive Type
Direct Drive
Wattage
1100 W
Number of Speeds
1
Application
Condenser Fan
Full Load Current @ 60 Hz
7.0/3.5 A
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Frequency
60 Hz
Mounting Position
Vertical Shaft Up
Ambient Temperature - Maximum
70 Degrees C
Includes
Removable Base
Sub Application
Condenser Fan
Efficiency Rating
Standard Efficiency (IE1)
Shaft Design
Keyed
Motor Enclosure Type
Open Air Over
Product Type
Condenser Fan Motor
Bearing Type
Ball

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 7.0/3.5 A Full Load Amps, 48Y Frame, Output Watts 1100 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
