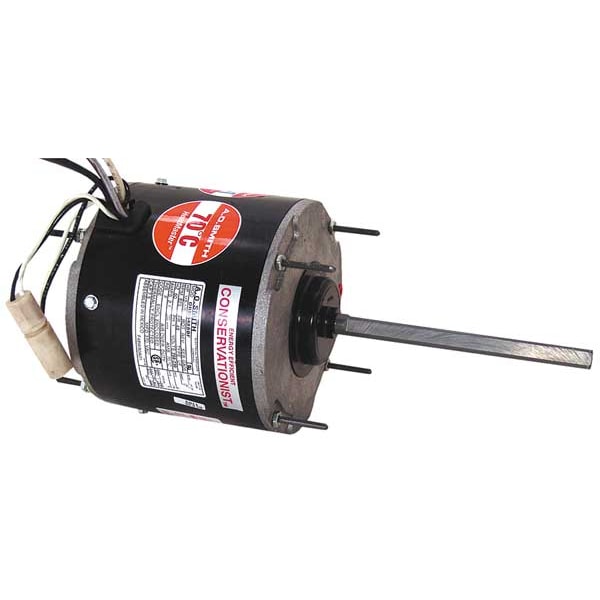

Condenser Fan Motor, 1/3 hp

  • Mfr # ORM4688BF
  • Zoro # G1017703
product price:
$
239.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3 to 1/8
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ORM4688BF
Zoro #
G1017703
UPC #
-
Country of Origin
India

Dimensions

Overall Length
12 5/8 in
Stud Size
#8-32
Bolt Circle Dia.
5 1/8 in
Shaft Dia.
1/2 in
Lead Length
48 in
Body Dia.
5 5/8 in
Length Less Shaft
6 1/8 in
Shaft Length
6 1/2 in
Mounting Stud Length
1 1/8 in
Frame Size
48
Mounting Stud Thread Size
#8-32
Body Diameter
5.6 in
Bolt Circle Diameter
5 1/8 in
Shaft Diameter
1/2 in
Wire Rope Length
12 5/8 in
Length
12 5/8 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3 to 1/8
RPM Range
0-1,000
No. of Speeds
1
Voltage
460V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Hz
60 Hz
Features
Belly Band, Extended Studs Shaft End and Opposite Shaft End, Mounting Holes in Shell, Thermally Protected
Item
Condenser Fan Motor
Motor Service Factor
1
Motor Sub Application
Condenser Fan
Motor Application
HVAC/R
Capacitor Required
Capacitor Not Included
Ins. Class
F
Nameplate RPM
825
Motor Mounting Position
All Angle
Duty
Continuous
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Max. Ambient Temp.
70 Degrees C
Motor Bearings
Ball
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Standards
CSA, UL
Motor Thermal Protection
Auto
Stud Quantity
4
Motor Shaft Design
Double-Flat
Full Load Amps
1.0 A
Usable @ 200V
Not Usable at 200V
Duty Cycle
Continuous
Motor Frame Material
Steel
Removable Base
No
Weight
17 lb
Output Watts
250 W
Usable @ 208V
Not Usable at 208V
Mounting
Stud
Product Type
Condenser Fan Motor
Insulation Class
F
Application
Condenser Fan
Drive Type
Direct Drive
Full Load Current @ 60 Hz
1.0 A
Ambient Temperature - Maximum
70 Degrees C
Nameplate Service Factor @ 60 Hz
1
Mounting Position
All Angle
Motor Enclosure Type
Totally Enclosed Air-Over
Shaft Design
Double Flat
Wattage
250 W
Sub Application
Condenser Fan
Frame Material
Steel
Frequency
60 Hz
Bearing Type
Ball
Efficiency Rating
Standard Efficiency (IE1)
Number of Speeds
1

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 460V AC, 1.0 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
