Shop CENTURY

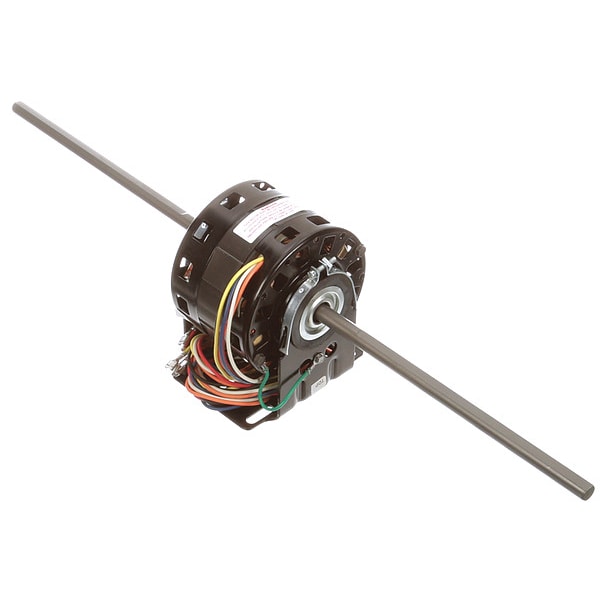

Condenser Fan Motor, 115V AC, Single, 1/10; 1/15; 1/20; 1/25; 1/30

  • Mfr # DBL6409

  • Zoro # G0789945

product price:
$
219.99
/ea
Free Shipping & Returns

Key Features

Application
Condenser Fan
Voltage
115V AC
Phase
Single
Hz
60 Hz
HP
1/10; 1/15; 1/20; 1/25; 1/30
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
DBL6409
Zoro #
G0789945
UPC #
-
Country of Origin
Mexico
Application
Condenser Fan
Voltage
115V AC
Phase
Single
Item
Condenser Fan Motor
Hz
60 Hz
HP
1/10; 1/15; 1/20; 1/25; 1/30
Standards
CSA Certified, UL Recognized
Features
1/2 in Diameter Double Shaft with Double Flats, Fan Coil - Dual Wheel Blower Motor, Shaded Pole
Ins. Class
B
Motor Mounting Position
Horizontal
Motor Design
Single-Phase
Duty
Air Over
Motor Mounting Type
Resilient Base
Motor Shaft Design
Flat
Motor Application
HVAC/R
Motor Thermal Protection
Auto
Motor Bearings
Sleeve
Motor Shaft Rotation
CCWLE
Motor Service Factor
1
Max. Ambient Temp.
40 Degrees C
No. of Speeds
5
RPM Range
1,001-1,100
Motor Enclosure Design
Open Air-Over
Frame
42Y
Full Load Amps
1.6; 1.9; 2.2; 2.8; 3.5
Nameplate RPM
1,050
Motor Sub Application
Condenser Fan
Voltage Compatibility
115V AC
Mounting Position
Horizontal
Wattage
70 W
Sub Application
Condenser Fan
Shaft Design
Flat
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Full Load Current @ 60 Hz
1.6 A, 1.9 A, 2.2 A, 2.8 A, 3.5 A
Usable @ 208V
Not Usable at 208V
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Bearing Type
Sleeve
Drive Type
Direct Drive
Motor Enclosure Type
Open Air Over
Product Type
Condenser Fan Motor
Number of Speeds
5
Insulation Class
B

Description

Condenser Fan Motor, Single Phase, Motor Design Single-Phase, 1/10 hp, 1/15 hp, 1/20 hp, 1/25 hp, 1/30 hp HP, Nameplate RPM 1,050 RPM, No. of Speeds 5, Voltage 115V AC, 1.6 A, 1.9 A, 2.2 A, 2.8 A, 3.5 A Full Load Amps, 42Y Frame, Output Watts 70 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Air Over, Motor Mounting Type Cradle Base
