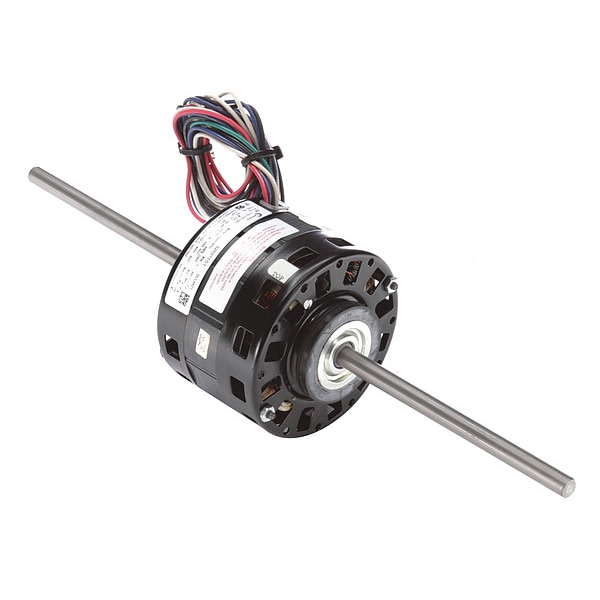

Fan Coil and Air Conditioner Motor, 115V AC, Single, 1/10, 1/15, 1/25
Mfr # DCL4421
Zoro # G0789918
product price:Â
$
271.99
/ea
Free Shipping & Returns
Key Features
Voltage
115V AC
Phase
Single
HP
1/10,1/15,1/25
Hz
60 Hz
Standards
CSA Certified, UL Listed
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- DCL4421
- Zoro #
- G0789918
- UPC #
- -
- Country of Origin
- Mexico
Dimensions
- Overall Length
- 18 in
- Shaft Length
- 7 5/16 in
- Length Less Shaft
- 2 29/32 in
- Shaft Dia.
- 1/2 in
- Lead Length
- 38 1/2 in
- Body Dia.
- 5 in
- Resilient Ring Dia.
- 2 1/2 in
- Shaft Diameter
- 1/2 in
- Frame Size
- 42Y
- Resilient Ring Diameter
- 2 1/2 in
- Body Diameter
- 5 in
- Wire Rope Length
- 18 in
- Length
- 18 in
Description
Room Air Conditioner Motor, Single Phase, Motor Design Shaded Pole, 1/10 hp, 1/15 hp, 1/25 hp HP, Nameplate RPM 1,550 RPM, No. of Speeds 3, Voltage 115V AC, 3.5 A Full Load Amps, 42Y Frame, Output Watts 70 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Enclosed
