  9. Condenser Fan Motor, 1/2 hp
No Product Image Available

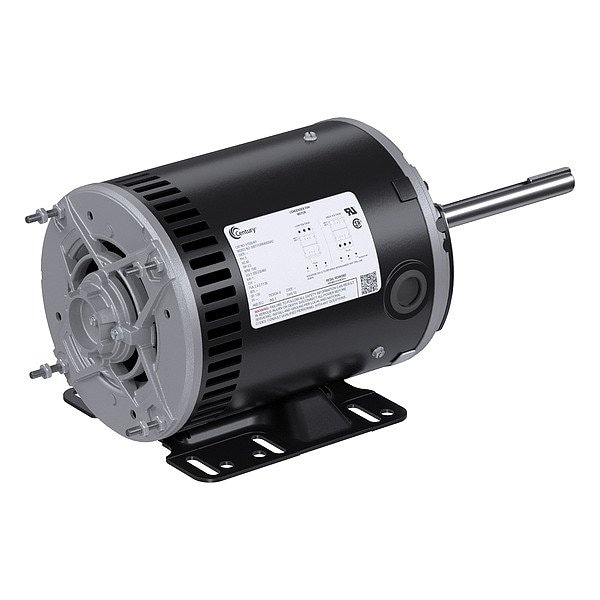

Condenser Fan Motor, 1/2 hp

  • Mfr # 056T11ORR40009A2

  • Zoro # G111931023

product price: $690.99
/ea
Free Shipping & Returns

Key Features

Motor Design
3-Phase
HP
1/2
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
230/460V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
056T11ORR40009A2
Zoro #
G111931023
UPC #
786674076090
Country of Origin
Mexico

Dimensions

Overall Length
17 7/8 in
Shaft Dia.
5/8 in
Shaft Length
6 in
Length Less Shaft
11 7/8 in
Body Dia.
6 5/8 in

Details

Item
Condenser Fan Motor
Motor Design
3-Phase
HP
1/2
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
230/460V AC
Frame
56HZ
Motor Mounting Type
Lug
Phase
Three
Motor Enclosure Design
Open Air-Over
Voltage Compatibility
230V AC, 460V AC
Motor Service Factor
1
Hz
60 Hz
Ins. Class
F
Features
Double Sealed Ball Bearings are Pre-Lubricated with a Special Formulation for Moisture Resistance and Provide Extra-Long Life
No. of Speeds
1
Motor Thermal Protection
Auto
Max. Ambient Temp.
70 Degrees C
Full Load Amps
2.7 A
Nominal Efficiency
68 %
Application
Condenser Fan
Motor Shaft Design
Keyed
Motor Mounting Position
Vertical Shaft Up
Motor Bearings
Ball
Motor Application
HVAC/R
Motor Shaft Rotation
CW/CCW
Standards
CSA Certified, UL Listed
Duty
Continuous

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 230/460V AC, 2.7 A Full Load Amps, 56HZ Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over, Motor Mounting Type Lug, Motor Frame Material Steel
