Shop CENTURY

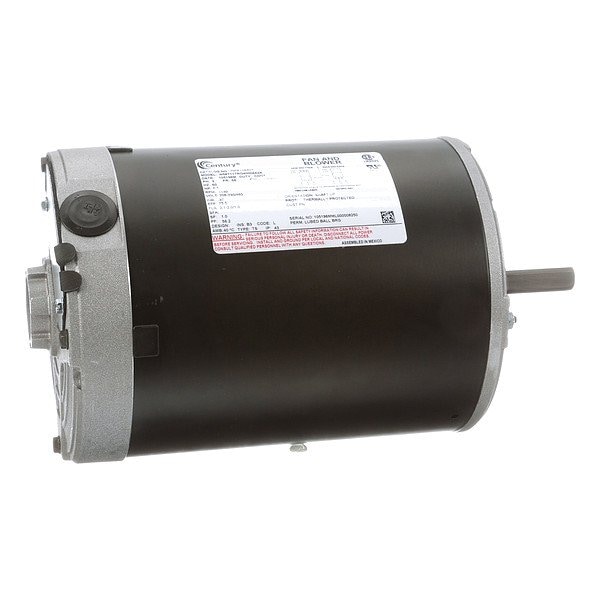

Condenser Fan Motor, 1/2 hp

  • Mfr # OKR1096V1

  • Zoro # G511931128

product price:  $756.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Three-Phase
HP
1/2
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
230/460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
OKR1096V1
Zoro #
G511931128
UPC #
786674075000
Country of Origin
Mexico

Dimensions

Body Dia.
6 9/16 in
Length Less Shaft
10 1/16 in
Shaft Dia.
5/8 in
Shaft Length
1 29/32 in
Overall Length
11 31/32 in
Body Diameter
6.6 in
Frame Size
56
Shaft Diameter
5/8 in
Wire Rope Length
11 31/32 in

Details

Item
Condenser Fan Motor
Motor Design
Three-Phase
HP
1/2
RPM Range
1,101-1,200
Nameplate RPM
1,140
Voltage
230/460V AC
Frame
56
Phase
Three
Motor Enclosure Design
Totally Enclosed Air-Over
Voltage Compatibility
230V AC, 460V AC
Motor Mounting Position
Vertical Shaft Up
Motor Application
HVAC/R
No. of Speeds
1
Features
Vertical/Horizontal Mounting for Proper Placement of the Fan within Airflow
Motor Service Factor
1
Hz
60 Hz
Max. Ambient Temp.
40 Degrees C
Standards
CSA Certified, UL Listed
Motor Bearings
Ball
Duty
Continuous
Motor Thermal Protection
Auto
Application
Fan/Blower
Ins. Class
B
Motor Shaft Rotation
CW/CCW
Nominal Efficiency
75.5 %
Full Load Amps
2.0 A
Motor Shaft Design
Flat
Drive Type
Direct Drive
Frequency
60 Hz
Frame Material
Steel
Product Type
Condenser Fan Motor
Ambient Temperature - Maximum
40 Degrees C
Number of Speeds
1
Motor Enclosure Type
Totally Enclosed Air-Over
Bearing Type
Ball
Insulation Class
B
Wattage
370 W
Full Load Current @ 60 Hz
2.0 A
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Flat
Sub Application
Condenser Fan
Capacitor Required
Capacitor Not Required
Usable @ 208V
Not Usable at 208V

Description

Condenser Fan Motor, Three Phase, Motor Design Three-Phase, 1/2 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 230/460V AC, 2.0 A Full Load Amps, 56 Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Belly Band, Motor Frame Material Steel
