Shop CENTURY

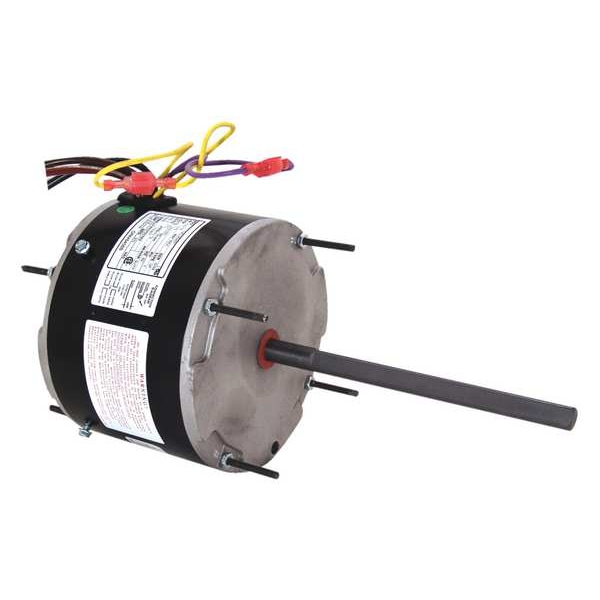

Condenser Fan Motor, 1/3 hp

  • Mfr # ORM5458B
  • Zoro # G1299593
product price:
$
121.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3 to 1/6
RPM Range
1,001-1,100
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ORM5458B
Zoro #
G1299593
UPC #
-
Country of Origin
India

Dimensions

Shaft Dia.
1/2 in
Lead Length
48 in
Length Less Shaft
5 1/16 in
Stud Size
#8-32
Body Dia.
5 5/8 in
Shaft Length
6 11/16 in
Bolt Circle Dia.
5 1/8 in
Overall Length
11 11/16 in
Mounting Stud Length
15/16 in
Mounting Stud Thread Size
#8-32
Bolt Circle Diameter
5 1/8 in
Body Diameter
5.6 in
Shaft Diameter
1/2 in
Frame Size
48
Wire Rope Length
11 11/16 in
Length
11 11/16 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3 to 1/6
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208V AC to 230V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Max. Ambient Temp.
60 Degrees C
Item
Condenser Fan Motor
Motor Thermal Protection
Auto
Standards
CSA Certified, UL Recognized
Stud Quantity
4
Full Load Amps
2.0 A
Features
All Angle Mounting, Energy Efficient PSC Design, Removable Drain Plugs Each End, Rheem Mounting Holes
Capacitor Required
Capacitor Not Included
Nameplate RPM
1,075
Duty
Continuous
Ins. Class
B
Motor Application
HVAC/R
Motor Mounting Position
All Angle
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Motor Bearings
Ball
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Motor Shaft Design
Double-Flat
Motor Service Factor
1
Motor Sub Application
Condenser Fan
Hz
60 Hz
Output Watts
250 W
Motor Frame Material
Steel
Replacement For
Mfr. No. 3458
Removable Base
No
Usable @ 208V
Usable at 208V
Usable @ 200V
Not Usable at 200V
Motor Flange Type
Non-Ventilated
Weight
12 lb
Includes
Belly Band
Insulation Class
B
Shaft Design
Double Flat
Frame Material
Steel
Frequency
60 Hz
Full Load Current @ 60 Hz
2.0 A
Ambient Temperature - Maximum
60 Degrees C
Motor Enclosure Type
Totally Enclosed Air-Over
Number of Speeds
1
Product Type
Condenser Fan Motor
Sub Application
Condenser Fan
Drive Type
Direct Drive
Bearing Type
Ball
Mounting Position
All Angle
Flange Type
Non-Ventilated
Application
Condenser Fan
Wattage
250 W
Nameplate Service Factor @ 60 Hz
1

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.0 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Replacement For Mfr. No. 3458, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over
