Shop CENTURY

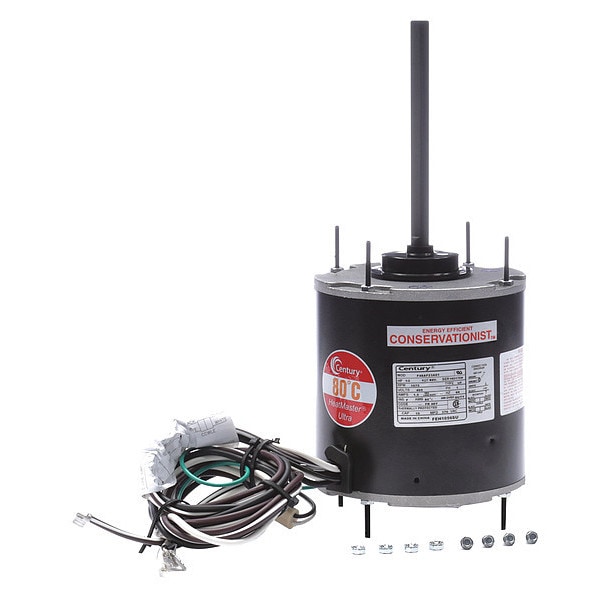

Condenser Fan Motor, 1/2 hp

  • Mfr # FEH1056SU
  • Zoro # G8795507
product price:
$
372.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
460V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FEH1056SU
Zoro #
G8795507
UPC #
-
Country of Origin
India

Dimensions

Shaft Dia.
1/2 in
Overall Length
13 in
Shaft Length
6 1/2 in
Stud Size
#8-32
Length Less Shaft
6 1/2 in
Lead Length
48 in
Body Dia.
5 5/8 in
Bolt Circle Dia.
5 1/8 in
Mounting Stud Length
1 1/8 in
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Mounting Stud Thread Size
#8-32
Frame Size
48
Bolt Circle Diameter
5 1/8 in
Wire Rope Length
13 in
Length
13 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
460V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Motor Thermal Protection
Auto
Full Load Amps
1.5 A
Duty
Continuous
Max. Ambient Temp.
80 Degrees C
Motor Service Factor
1
Features
Extended Thru-Bolts
Motor Sub Application
Condenser Fan
Motor Bearings
Ball
Motor Application
HVAC/R
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 460V AC, 220V AC to 230V AC, 460V AC, 220V AC, 460V AC, 230V AC, 460V AC, 796V AC, 230V AC, 460V AC, 440V AC to 460V AC, 460V AC, 796V AC, 460V AC
Motor Mounting Position
All Angle
Capacitor Required
Capacitor Not Included
Motor Shaft Design
Double-Flat
Application
Condenser Fan
Nameplate RPM
1,075
Item
Condenser Fan Motor
Hz
60 Hz
Ins. Class
F
Standards
UL Recognized and CSA Certified
Stud Quantity
4
Mounting Stud Pattern
5 5/32 in
Motor Flange Type
Non-Ventilated
Weight
19 lb
Removable Base
Yes
Output Watts
370 W
Usable @ 208V
Not Usable at 208V
Includes
Belly Band, Removable Base
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Mounting
Stud
Ambient Temperature - Maximum
80 Degrees C
Efficiency Rating
Standard Efficiency (IE1)
Frequency
60 Hz
Sub Application
Condenser Fan
Motor Enclosure Type
Totally Enclosed Air-Over
Full Load Current @ 60 Hz
1.5 A
Product Type
Condenser Fan Motor
Frame Material
Steel
Wattage
370 W
Bearing Type
Ball
Drive Type
Direct Drive
Number of Speeds
1
Mounting Position
All Angle
Flange Type
Non-Ventilated
Shaft Design
Double Flat
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 460V AC, 1.5 A Full Load Amps, 48 Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 80 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
