Shop CENTURY

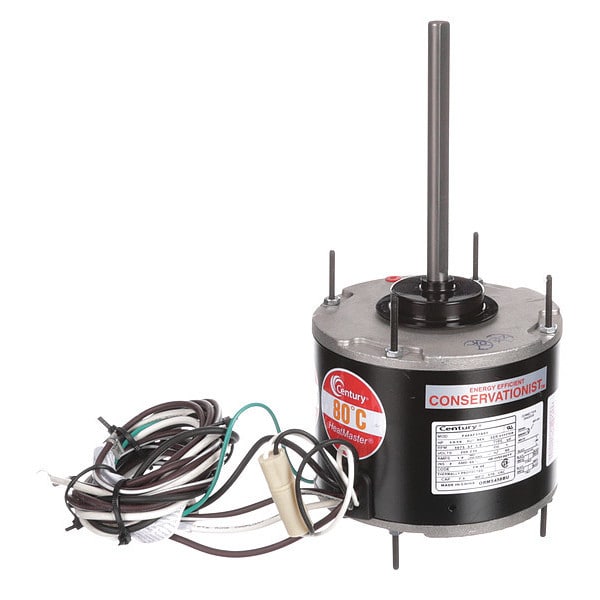

Condenser Fan Motor, 1/3 hp

  • Mfr # ORM5458BU
  • Zoro # G8795525
product price:
$
178.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208V AC to 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
ORM5458BU
Zoro #
G8795525
UPC #
-
Country of Origin
India
Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3 to 1/6
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208V AC to 230V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Motor Thermal Protection
Auto
Item
Condenser Fan Motor
Full Load Amps
1.9 A
Motor Application
HVAC/R
Mounting Stud Pattern
5 5/32 in
Nameplate RPM
1,075
Application
Condenser Fan
Capacitor Required
Capacitor Not Included
Duty
Continuous
Motor Shaft Design
Double-Flat
Motor Sub Application
Condenser Fan
Stud Quantity
4
Hz
60 Hz
Features
Extended Thru-Bolts
Max. Ambient Temp.
70 Degrees C
Standards
CSA Certified, UL Recognized
Motor Service Factor
1
Motor Bearings
Ball
Motor Mounting Position
All Angle
Ins. Class
F
Motor Flange Type
Non-Ventilated
Output Watts
250 W
Motor Frame Material
Steel
Usable @ 200V
Not Usable at 200V
Weight
12 lb
Removable Base
No
Includes
Belly Band
Usable @ 208V
Usable at 208V
Mounting
Stud
Flange Type
Non-Ventilated
Shaft Design
Double Flat
Number of Speeds
1
Wattage
250 W
Motor Enclosure Type
Totally Enclosed Air-Over
Mounting Position
All Angle
Nameplate Service Factor @ 60 Hz
1
Efficiency Rating
Standard Efficiency (IE1)
Full Load Current @ 60 Hz
1.9 A
Product Type
Condenser Fan Motor
Ambient Temperature - Maximum
70 Degrees C
Frame Material
Steel
Frequency
60 Hz
Insulation Class
F
Drive Type
Direct Drive
Bearing Type
Ball
Sub Application
Condenser Fan

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 1.9 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
