Shop CENTURY

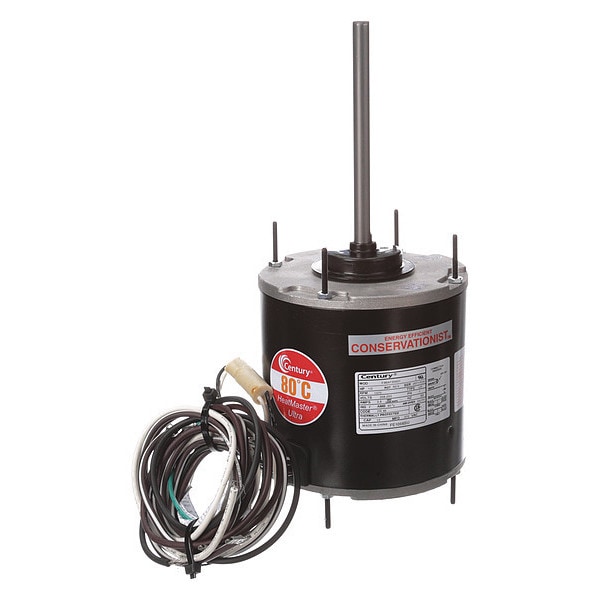

Condenser Fan Motor, 1/2 hp

  • Mfr # FE1056SU

  • Zoro # G8795464

product price:
$
214.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FE1056SU
Zoro #
G8795464
UPC #
-
Country of Origin
India

Dimensions

Length Less Shaft
6 1/4 in
Shaft Length
6 1/2 in
Bolt Circle Dia.
5 1/8 in
Lead Length
48 in
Overall Length
12 3/4 in
Shaft Dia.
1/2 in
Stud Size
#8-32
Body Dia.
5 5/8 in
Mounting Stud Length
1 1/16 in
Mounting Stud Thread Size
#8-32
Shaft Diameter
1/2 in
Body Diameter
5.6 in
Frame Size
48
Bolt Circle Diameter
5 1/8 in
Wire Rope Length
12 3/4 in
Length
12 3/4 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/2
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Duty
Continuous
Max. Ambient Temp.
80 Degrees C
Motor Shaft Design
Double-Flat
Application
Condenser Fan
Motor Service Factor
1
Motor Sub Application
Condenser Fan
Mounting Stud Pattern
5 5/32 in
Motor Thermal Protection
Auto
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Ins. Class
F
Full Load Amps
3.8 A
Stud Quantity
4
Motor Application
HVAC/R
Nameplate RPM
1,075
Motor Mounting Position
All Angle
Standards
UL Recognized and CSA Certified
Hz
60 Hz
Motor Bearings
Ball
Capacitor Required
Capacitor Not Included
Item
Condenser Fan Motor
Features
Extended Thru-Bolts
Weight
18 lb
Removable Base
Yes
Usable @ 208V
Usable at 208V
Output Watts
370 W
Motor Frame Material
Steel
Motor Flange Type
Non-Ventilated
Usable @ 200V
Not Usable at 200V
Includes
Belly Band, Removable Base
Mounting
Stud
Flange Type
Non-Ventilated
Frequency
60 Hz
Drive Type
Direct Drive
Full Load Current @ 60 Hz
3.8 A
Motor Enclosure Type
Totally Enclosed Air-Over
Shaft Design
Double Flat
Insulation Class
F
Nameplate Service Factor @ 60 Hz
1
Product Type
Condenser Fan Motor
Efficiency Rating
Standard Efficiency (IE1)
Ambient Temperature - Maximum
80 Degrees C
Bearing Type
Ball
Mounting Position
All Angle
Number of Speeds
1
Sub Application
Condenser Fan
Frame Material
Steel
Wattage
370 W

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/2 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 3.8 A Full Load Amps, 48 Frame, Output Watts 370 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 80 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
