  6. Condenser Fan Motor, 1/6to1/3HP, 1075 rpm

This item is Discontinued.

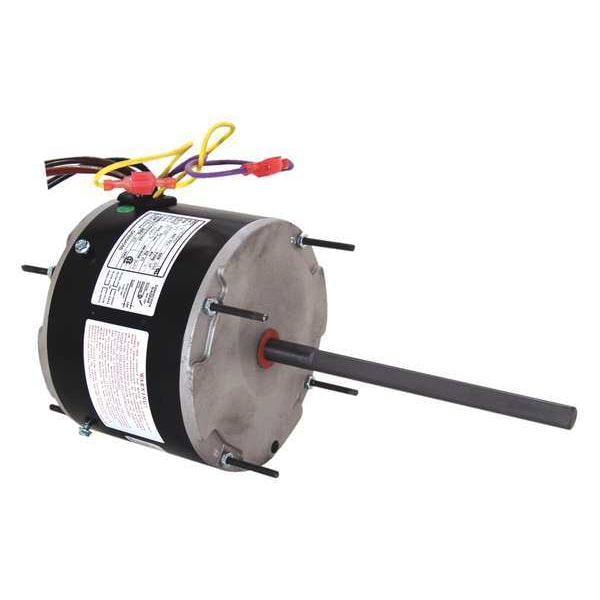

Century Condenser Fan Motor, 1/6to1/3HP, 1075 rpm ORM5458

Condenser Fan Motor, 1/6to1/3HP, 1075 rpm (Discontinued)

  • Mfr # ORM5458
  • Zoro # G2592204
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
ORM5458
Zoro #
G2592204
UPC #
-
Country of Origin
India

Dimensions

Body Dia.
5 5/8 in
Overall Length
11 11/16 in
Shaft Length
6 3/4 in
Lead Length
48 in
Shaft Dia.
1/2 in
Length Less Shaft
5 in
Stud Size
#8-32
Mounting Stud Length
15/16 in
Bolt Circle Dia.
5 1/8 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3 to 1/6
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Full Load Amps
2.0 A
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Standards
CSA Certified, UL Recognized
Motor Mounting Position
All Angle
Stud Quantity
4
Motor Bearings
Sleeve
Max. Ambient Temp.
70 Degrees C
Duty
Continuous
Features
Energy Efficient, Reversible, Rheem Mounting Holes
Motor Sub Application
Condenser Fan
Motor Application
HVAC/R
Capacitor Required
2MDV6
Motor Thermal Protection
Auto
Motor Shaft Design
Double-Flat
Nameplate RPM
1,075
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Ins. Class
B
Item
Condenser Fan Motor
Hz
60 Hz
Motor Service Factor
1
Motor Frame Material
Steel
Usable @ 200V
No
Removable Base
No
Replacement For
Mfr. No. 3221, 3458
Includes
Belly Band
Weight
12 lb
Usable @ 208V
Yes
Output Watts
250 W
Motor Flange Type
Non-Ventilated

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 to 1/6 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 208-230V AC, 2.0 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Replacement For Mfr. No. 3221, 3458, Usable @ 208V Yes, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
