  11. Condenser Fan Motor, 1/8 to 1/3 HP, 825rpm

This item is Discontinued.

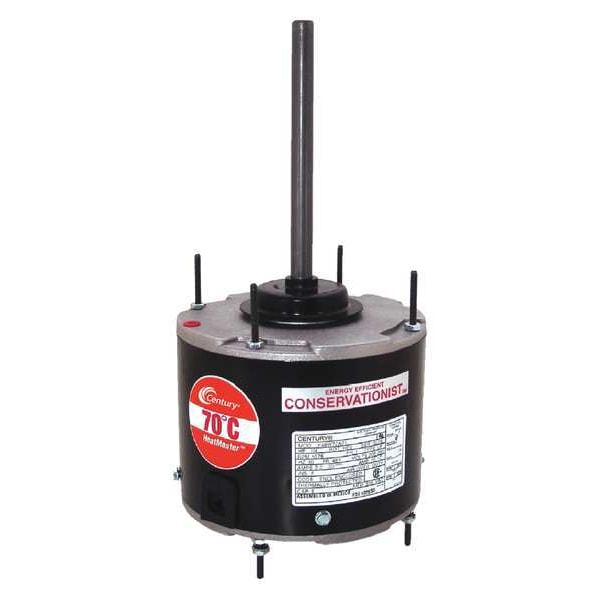

Century Condenser Fan Motor, 1/8 to 1/3 HP, 825rpm ORM5488F

Condenser Fan Motor, 1/8 to 1/3 HP, 825rpm (Discontinued)

  • Mfr # ORM5488F
  • Zoro # G0392174
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ORM5488F
Zoro #
G0392174
UPC #
-
Country of Origin
India

Dimensions

Stud Size
#8-32
Shaft Length
6 1/2 in
Lead Length
48 in
Shaft Dia.
1/2 in
Overall Length
12 1/4 in
Length Less Shaft
5 3/4 in
Body Dia.
5 5/8 in
Bolt Circle Dia.
5 1/8 in
Mounting Stud Length
1 1/8 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3 to 1/8
RPM Range
0-1,000
No. of Speeds
1
Voltage
208-230V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Capacitor Required
2MDV6
Motor Bearings
Sleeve
Motor Service Factor
1
Motor Sub Application
Condenser Fan
Hz
60 Hz
Features
All Angle Mounting, Energy Efficient PSC Design, Removable Drain Plugs Each End, Rheem Mounting Holes
Duty
Continuous
Ins. Class
F
Full Load Amps
2.1 A
Nameplate RPM
825
Motor Application
HVAC/R
Stud Quantity
4
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Max. Ambient Temp.
70 Degrees C
Motor Thermal Protection
Auto
Motor Mounting Position
All Angle
Motor Shaft Design
Double-Flat
Voltage Compatibility
115/208-230V AC, 200-230V AC, 208-220/440V AC, 208-230/277V AC, 208-230/440V AC, 208-230/460V AC, 208-230V AC, 208-240V AC
Item
Condenser Fan Motor
Standards
CSA Certified, UL Recognized
Weight
16 lb
Usable @ 208V
Yes
Output Watts
250 W
Usable @ 200V
No
Motor Flange Type
Non-Ventilated
Includes
Belly Band
Motor Frame Material
Steel
Removable Base
Yes

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 to 1/8 HP, Nameplate RPM 825, No. of Speeds 1, Voltage 208-230V AC, 2.1 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Yes, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud, Motor Frame Material Steel
