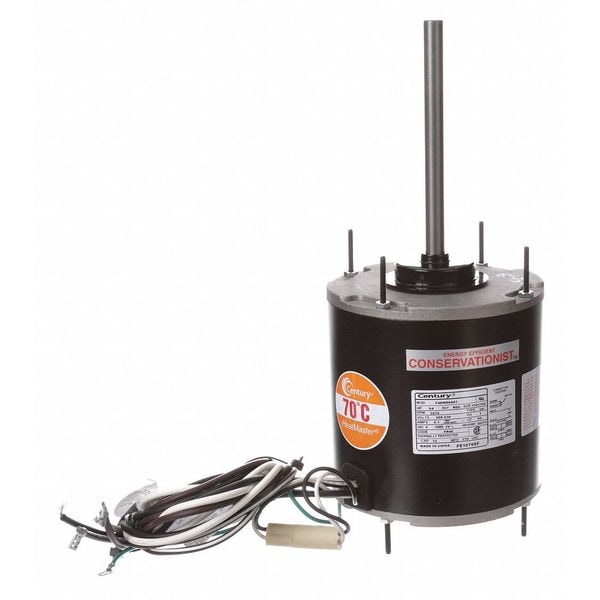

Condenser Fan Motor, 3/4 hp

  • Mfr # FE1076SF
  • Zoro # G1786967
product price:
$
175.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208V AC to 230V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
FE1076SF
Zoro #
G1786967
UPC #
-
Country of Origin
Mexico

Dimensions

Shaft Length
6 1/2 in
Lead Length
48 in
Overall Length
13 in
Length Less Shaft
6 1/2 in
Body Dia.
5 5/8 in
Stud Size
#8-32
Shaft Dia.
1/2 in
Bolt Circle Dia.
5 1/8 in
Mounting Stud Length
1 1/16 in
Mounting Stud Thread Size
#8-32
Shaft Diameter
1/2 in
Frame Size
48
Bolt Circle Diameter
5 1/8 in
Body Diameter
5.6 in
Wire Rope Length
13 in
Length
13 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
3/4
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
208V AC to 230V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Motor Service Factor
1
Ins. Class
F
Motor Application
HVAC/R
Item
Condenser Fan Motor
Standards
CSA Certified, UL Recognized
Nameplate RPM
1,075
Full Load Amps
5.1 A
Mounting Stud Pattern
3 5/8 in x 3 5/8 in
Capacitor Required
Capacitor Not Included
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Duty
Continuous
Motor Bearings
Ball
Stud Quantity
4
Motor Mounting Position
All Angle
Motor Shaft Design
Double-Flat
Motor Thermal Protection
Auto
Hz
60 Hz
Motor Sub Application
Condenser Fan
Max. Ambient Temp.
70 Degrees C
Replacement For
Mfr. No. 3735HS
Usable @ 200V
Not Usable at 200V
Weight
18 lb
Removable Base
Yes
Features
Belly Band, Extended Studs Shaft and Lead End, Mounting Holes in Shell
Motor Frame Material
Steel
Usable @ 208V
Usable at 208V
Output Watts
560 W
Duty Cycle
Continuous
Mounting
Stud
Drive Type
Direct Drive
Includes
Removable Base
Nameplate Service Factor @ 60 Hz
1
Shaft Design
Double Flat
Motor Enclosure Type
Totally Enclosed Air-Over
Application
Condenser Fan
Frame Material
Steel
Frequency
60 Hz
Ambient Temperature - Maximum
70 Degrees C
Sub Application
Condenser Fan
Wattage
560 W
Insulation Class
F
Number of Speeds
1
Efficiency Rating
Standard Efficiency (IE1)
Mounting Position
All Angle
Full Load Current @ 60 Hz
5.1 A
Product Type
Condenser Fan Motor
Bearing Type
Ball

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 3/4 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 208-230V AC, 5.1 A Full Load Amps, 48 Frame, Output Watts 560 W, 60 Hz Hz, Replacement For Mfr. No. 3735HS, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW
