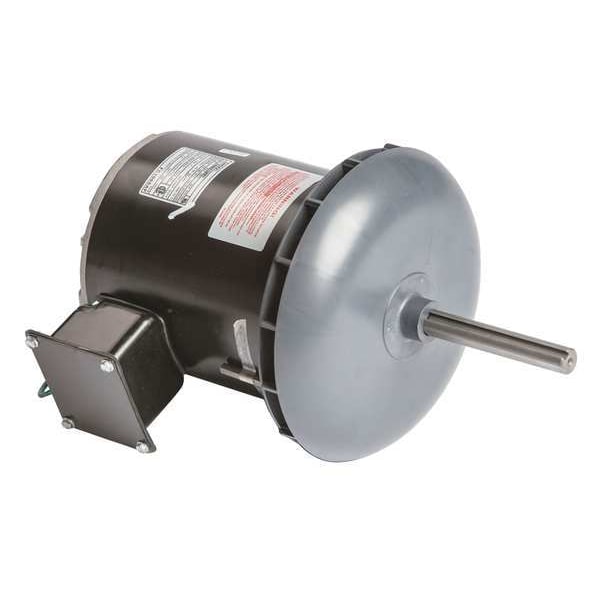

Condenser Fan Motor, 5/8 HP, 1075 rpm, 60Hz

CENTURY| Zoro #: G1107294| Mfr #: FC1066AF

$266.52 /ea

This item ships free. DetailsStandard ground shipping

Technical Specifications

Zoro #: G1107294 Mfr #: FC1066AF
Motor Service Factor: 1.00Motor Sub Application: Condenser Fan
Motor Application: HVAC/RItem: Condenser Fan Motor
Motor Thermal Protection: AutoFeatures: Energy Efficient, Auto Protector, High Thrust Capacity, Reversible
Voltage Compatibility: 200, 208, 230, 240, 460, 200-230, 200-230/440, 208-230/460, 220/460, 200-230/460, 230/460Standards: UL Recognized (E46412), CSA Certified (LR43341)
Motor Shaft Design: Keyed with Single FlatShaft Length: 4-7/16"
Motor Enclosure Design: Open Air-OverOverall Length: 12-15/16"
Motor Mounting Position: Vertical Shaft UpMotor Mounting Type: Band
Hz: 60Lead Length: 5 to 7"
Motor Design: Permanent Split CapacitorDuty: Continuous
No. of Speeds: 1Capacitor Required: 2MDY7
Phase: 1Body Dia.: 5-5/8"
Nameplate RPM: 1075Ins. Class: F
Max. Ambient Temp.: 70 Degrees CFrame: 48Y
HP: 5/8Motor Bearings: Ball
Length Less Shaft: 8-1/2"Full Load Amps: 4.0/2.0
Motor Shaft Rotation: CW/CCWShaft Dia.: 5/8"
Voltage: 200-230/460Country of Origin (subject to change): Mexico

Product Description

Condenser Fan Motor, Motor Design Permanent Split Capacitor, Motor Enclosure Design Open Air-Over, 5/8 HP, RPM Range 1001-1100, Nameplate RPM 1075, Voltage 200-230/460, 48Y Frame, No. of Speeds 1, Overall Length 12-15/16 In., Shaft Length 4-7/16 In., Motor Mounting Position Vertical Shaft Up, Features Energy Efficient, Auto Protector, High Thrust Capacity, Reversible, Motor Shaft Rotation CW/CCW, Full Load Amps 4.0/2.0, Band Motor Mounting Type, Motor Thermal Protection Auto, Ins. Class F
