Condenser Fan Motor, 7/8 HP, 1075 rpm, 60Hz

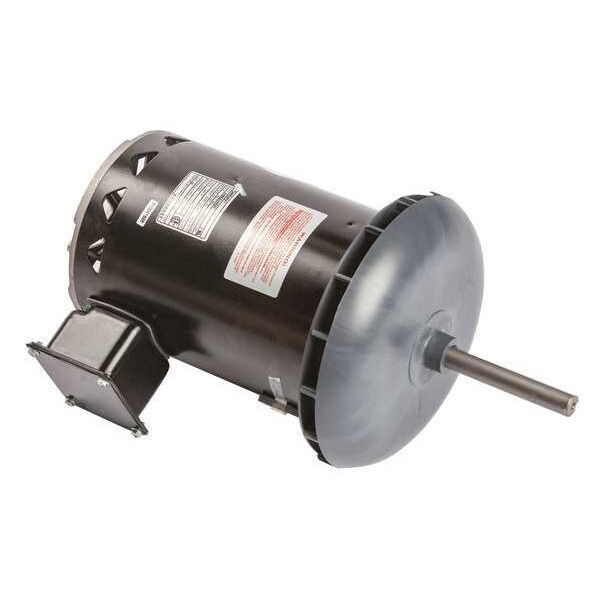

Century Condenser Fan Motor, 7/8 HP, 1075 rpm, 60Hz FC1086AF
Tap to zoom
Hover or click to zoom
Feedback Help us improve our product images
$301.95
  • Motor Design: Permanent Split Capacitor
  • Phase: Single
  • HP: 7/8
See full product details
This item ships free.
Total: $301.95

Century #FC1086AF Specifications

  • Motor Design: Permanent Split Capacitor
  • Phase: Single
  • HP: 7/8
  • RPM Range: 1,001-1,100
  • No. of Speeds: 1
  • Voltage: 200-230/460V AC
  • Motor Shaft Rotation: CW/CCW
  • Frame: 48Y
  • Motor Enclosure Design: Open Air-Over
  • Motor Mounting Type: Band/Stud
  • Voltage Compatibility: 200-230/440V AC, 200-230/460V AC, 200-230V AC, 200V AC
  • Nameplate RPM: 1,075
  • Max. Ambient Temp.: 70 Degrees C
  • Standards: CSA Certified, UL Recognized
  • Motor Bearings: Ball
  • Motor Sub Application: Condenser Fan
  • Motor Application: HVAC/R
  • Item: Condenser Fan Motor
  • Capacitor Required: 2MDW2
  • Shaft Dia.: 5/8 in
  • Hz: 60
  • Shaft Length: 3 5/8 in
  • Duty: Continuous
  • Lead Length: 5 in
  • Features: Belly Band, Thermally Protected, Vertical Shaft Up
  • Overall Length: 14 1/4 in
  • Body Dia.: 5 5/8 in
  • Length Less Shaft: 10 5/8 in
  • Motor Mounting Position: Vertical Shaft Up
  • Motor Shaft Design: Keyed
  • Motor Thermal Protection: Auto
  • Ins. Class: F
  • Full Load Amps: 4.6/2.3
  • Motor Service Factor: 1
  • Motor Frame Material: Steel
  • Usable @ 200V: Yes
  • Weight: 26 lb
  • Output Watts: 600 W
  • Conduit Box Location: Exterior
  • Duty Cycle: Continuous
  • Removable Base: Yes
  • Usable @ 208V: Yes
  • Conduit Box Position: F1
  • Country of Origin (subject to change): Mexico
Feedback Help us improve our product information

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 7/8 HP, Nameplate RPM 1,075, No. of Speeds 1, Voltage 200-230/460V AC, 4.6/2.3 Full Load Amps, 48Y Frame, Output Watts 600 W, 60 Hz, Usable @ 208V Yes, Usable @ 200V Yes, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air-Over, Motor Mounting Type Round Belly Band
