Shop CENTURY

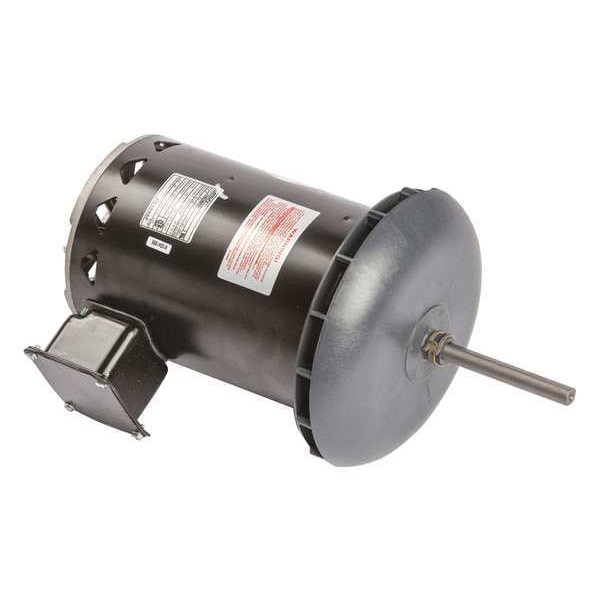

Condenser Fan Motor, 7/8 hp

  • Mfr # FC1086F
  • Zoro # G1795507
product price:
$
494.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
7/8
RPM Range
1,001-1,100
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
FC1086F
Zoro #
G1795507
UPC #
-
Country of Origin
Mexico
Motor Design
Permanent Split Capacitor
Phase
Single
HP
7/8
RPM Range
1,001-1,100
No. of Speeds
1
Voltage
200V AC to 230V AC, 460V AC
Motor Shaft Rotation
CW/CCW
Frame
48Y
Motor Enclosure Design
Open Air-Over
Motor Mounting Type
Band
Motor Mounting Position
Vertical Shaft Up
Hz
60 Hz
Motor Shaft Design
Double-Flat
Ins. Class
F
Item
Condenser Fan Motor
Standards
CSA Certified, UL Recognized
Motor Thermal Protection
Auto
Duty
Continuous
Full Load Amps
4.6/2.3 A
Motor Service Factor
1
Motor Sub Application
Condenser Fan
Nameplate RPM
1,075
Motor Application
HVAC/R
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 200V AC to 230V AC, 200V AC
Motor Bearings
Ball
Max. Ambient Temp.
70 Degrees C
Features
Belly Band, Thermally Protected, Vertical Shaft Up
Capacitor Required
Capacitor Not Included
Weight
31 lb
Usable @ 200V
Usable at 200V
Motor Frame Material
Steel
Conduit Box Location
Exterior
Removable Base
Yes
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Conduit Box Position
F1
Output Watts
600 W
Mounting
Band
Insulation Class
F
Drive Type
Direct Drive
Product Type
Condenser Fan Motor
Bearing Type
Ball
Sub Application
Condenser Fan
Frequency
60 Hz
Shaft Design
Double Flat
Nameplate Service Factor @ 60 Hz
1
Ambient Temperature - Maximum
70 Degrees C
Wattage
600 W
Application
Condenser Fan
Frame Material
Steel
Includes
Removable Base
Motor Enclosure Type
Open Air Over
Efficiency Rating
Standard Efficiency (IE1)
Number of Speeds
1
Mounting Position
Vertical Shaft Up
Full Load Current @ 60 Hz
4.6/2.3 A

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 7/8 hp HP, Nameplate RPM 1,075 RPM, No. of Speeds 1, Voltage 200-230/460V AC, 4.6/2.3 A Full Load Amps, 48Y Frame, Output Watts 600 W, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Duty Cycle Continuous, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Air Over
