Shop CENTURY

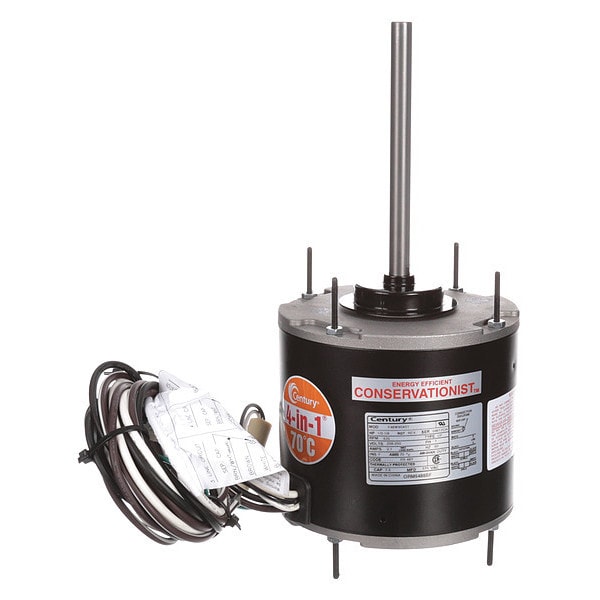

Condenser Fan Motor, 1/8 hp; 1/3 hp

  • Mfr # ORM5488BF
  • Zoro # G1132844
product price:
$
223.99
/ea
Free Shipping & Returns

Key Features

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3 to 1/8
RPM Range
0-1,000
No. of Speeds
1
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
ORM5488BF
Zoro #
G1132844
UPC #
-
Country of Origin
India

Dimensions

Shaft Dia.
1/2 in
Overall Length
12 1/4 in
Lead Length
48 in
Shaft Length
6 1/2 in
Length Less Shaft
5 3/4 in
Body Dia.
5 5/8 in
Stud Size
#8-32
Bolt Circle Dia.
5 1/8 in
Mounting Stud Length
1 1/8 in
Bolt Circle Diameter
5 1/8 in
Body Diameter
5.6 in
Frame Size
48
Mounting Stud Thread Size
#8-32
Shaft Diameter
1/2 in
Wire Rope Length
12 1/4 in
Length
12 1/4 in

Details

Motor Design
Permanent Split Capacitor
Phase
Single
HP
1/3 to 1/8
RPM Range
0-1,000
No. of Speeds
1
Voltage
208V AC to 230V AC
Motor Shaft Rotation
CW/CCW
Frame
48
Motor Enclosure Design
Totally Enclosed Air-Over
Motor Mounting Type
Stud
Motor Application
HVAC/R
Voltage Compatibility
115V AC, 208V AC to 230V AC, 200V AC to 230V AC, 208V AC to 220V AC, 440V AC, 208V AC to 230V AC, 277V AC, 208V AC to 230V AC, 440V AC, 208V AC to 230V AC, 460V AC, 208V AC to 230V AC, 208V AC to 240V AC
Motor Service Factor
1
Nameplate RPM
825
Duty
Continuous
Item
Condenser Fan Motor
Standards
CSA Certified, UL Recognized
Mounting Stud Pattern
2 1/4 in x 2 1/4 in
Motor Shaft Design
Double-Flat
Stud Quantity
4
Motor Bearings
Ball
Features
All Angle Mounting, Energy Efficient PSC Design, Removable Drain Plugs Each End, Rheem Mounting Holes
Motor Mounting Position
All Angle
Full Load Amps
2.1 A
Capacitor Required
Capacitor Not Included
Motor Sub Application
Condenser Fan
Motor Thermal Protection
Auto
Ins. Class
F
Max. Ambient Temp.
70 Degrees C
Hz
60 Hz
Output Watts
250 W
Usable @ 200V
Not Usable at 200V
Motor Flange Type
Non-Ventilated
Removable Base
No
Usable @ 208V
Usable at 208V
Replacement For
Mfr. No. 3457HS, 3459HS, EM3459F
Motor Frame Material
Steel
Weight
16 lb
Includes
Belly Band
Mounting
Stud
Nameplate Service Factor @ 60 Hz
1
Full Load Current @ 60 Hz
2.1 A
Drive Type
Direct Drive
Application
Condenser Fan
Mounting Position
All Angle
Motor Enclosure Type
Totally Enclosed Air-Over
Wattage
250 W
Product Type
Condenser Fan Motor
Frequency
60 Hz
Insulation Class
F
Bearing Type
Ball
Flange Type
Non-Ventilated
Frame Material
Steel
Sub Application
Condenser Fan
Number of Speeds
1
Ambient Temperature - Maximum
70 Degrees C
Shaft Design
Double Flat

Description

Condenser Fan Motor, Single Phase, Motor Design Permanent Split Capacitor, 1/3 hp, 1/8 hp HP, Nameplate RPM 825 RPM, No. of Speeds 1, Voltage 208-230V AC, 2.1 A Full Load Amps, 48 Frame, Output Watts 250 W, 60 Hz Hz, Replacement For Mfr. No. 3457HS, 3459HS, EM3459F, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class F, Max. Ambient Temp. 70 Degrees C, Motor Shaft Rotation CW/CCW
