Shop CENTURY

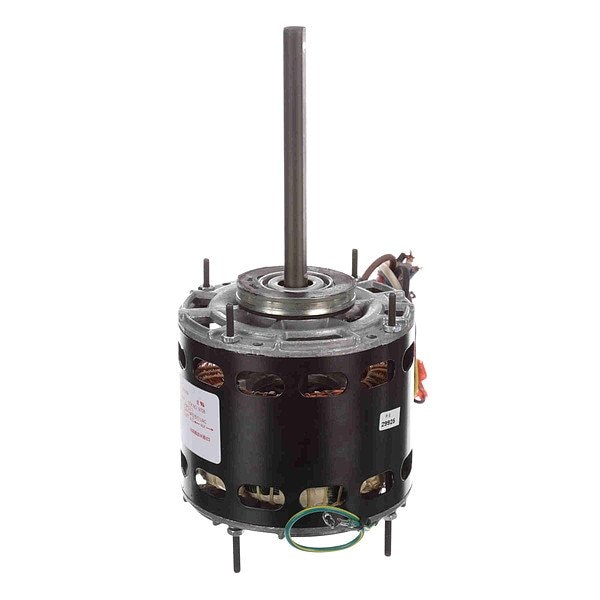

Direct Drive Blower Motor, 1/10 hp

  • Mfr # 9708A

  • Zoro # G414235620

product price:
$
149.99
/ea
Free Shipping & Returns

Key Features

Body Dia.
5 in
Motor Enclosure Design
Open Air-Over
Manufacturers Warranty Length
2 yr
Bolt Circle Dia.
4 5/8 in
Motor Sub Application
Direct Drive Fan/Blower
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
9708A
Zoro #
G414235620
UPC #
786674077547
Country of Origin
Mexico

Dimensions

Body Dia.
5 in
Manufacturers Warranty Length
2 yr
Bolt Circle Dia.
4 5/8 in
Shaft Dia.
1/2 in
Length Less Shaft
4 13/16 in
Lead Length
13 in
Overall Length
10 5/8 in
Shaft Length
5 3/4 in
Bolt Circle Diameter
4 5/8 in
Frame Size
42
Shaft Diameter
1/2 in
Body Diameter
5 in
Wire Rope Length
10 5/8 in

Details

Motor Enclosure Design
Open Air-Over
Item
Direct Drive Blower Motor
Motor Sub Application
Direct Drive Fan/Blower
Voltage
115V AC
Motor Thermal Protection
Auto
Weight
11.13 lb
Ins. Class
B
Motor Application
HVAC/R
Hz
60 Hz
Motor Mounting Position
Horizontal
No. of Speeds
3
Max. Ambient Temp.
104 Degrees F
Phase
Single
Capacitor Required
Capacitor Not Included
Standards
CSA, UL
Motor Shaft Design
Keyed
HP
1/10
Motor Frame Material
Steel
Motor Mounting Type
Ring
Motor Service Factor
1
Motor Design
Permanent Split Capacitor
Nameplate RPM
1,625
Motor Bearings
Ball
Frame
42
RPM Range
1,601-1,700
Full Load Amps
0.60 A, 0.97 A, 2.1 A
Voltage Compatibility
115V AC
Motor Shaft Rotation
CW/CCW
Includes
Resilient Mounting Rings
Application
Room Air Conditioner
Manufacturers Warranty
2 yr
Wattage
75 W
Frame Material
Steel
Insulation Class
B
Shaft Design
Keyed
Nameplate Service Factor @ 60 Hz
1
Drive Type
Direct Drive
Number of Speeds
3
Full Load Current @ 60 Hz
0.60 A, 0.97 A, 2.1 A
Motor Enclosure Type
Open Air Over
Usable @ 208V
Not Usable at 208V
Product Type
Room Air Conditioner Motor
Bearing Type
Ball
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C
Mounting Position
Horizontal
Sub Application
General Purpose

Description

Fan Coil and Air Conditioner Motors
