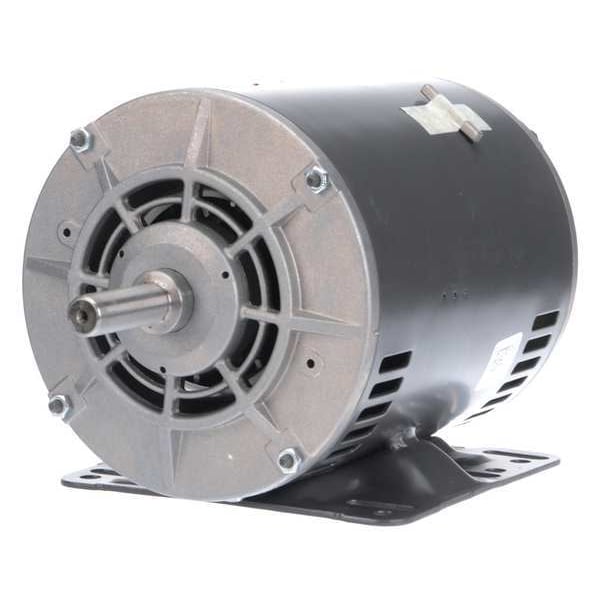

Mtr, 3 Ph, 1.5 HP, 1725, 208-230/460, 56H, ODP

  • Mfr # 4YU39
  • Zoro # G2027986
product price:
$
339.99
/ea
Free Shipping & Returns

Key Features

Motor Thermal Protection
None
Nameplate RPM
1,725
Body Dia.
6 1/2 in
Shaft Length
1 7/8 in
Full Load Amps
4.8-4.8/2.4 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
4YU39
Zoro #
G2027986
UPC #
190735339251
Country of Origin
United States
Motor Thermal Protection
None
Nameplate RPM
1,725
Full Load Amps
4.8-4.8/2.4 A
Voltage
208V AC to 230V AC, 460V AC
Phase
Three
Motor Mounting Type
Rigid Base
Duty
Continuous
Hz
60 Hz
Motor Design
Three-Phase
Motor Service Factor
1.15
HP
1 1/2
Motor Application
HVAC/R
Motor Sub Application
Direct Drive
No. of Speeds
1
Item
Fan and Blower Motor
Motor Shaft Design
Keyed
Motor Shaft Rotation
CW/CCW
Motor Enclosure Design
Open Dripproof
Capacitor Required
Capacitor Not Required
Frame
56H
Ins. Class
B
Motor Bearings
Ball
Voltage Compatibility
200V AC to 230V AC, 440V AC, 200V AC to 230V AC, 460V AC, 208V AC to 230V AC, 460V AC, 460V AC
Standards
CSA Certified, UL Recognized
Motor Mounting Position
All Angle
Max. Ambient Temp.
40 Degrees C
RPM Range
1,701-1,800
Stud Quantity
4
Usable @ 208V
Usable at 208V
Duty Cycle
Continuous
Number of Shafts
1
Includes
Capacitor
Usable @ 200V
Not Usable at 200V
Number of Speeds
1
Mounting
Rigid Base
Frame Material
Steel
Bearing Type
Ball
Product Type
Fan and Blower Motor
Application
Fan/Blower
Mounting Position
All Angle
Shaft Design
Keyed
Ambient Temperature - Maximum
40 Degrees C
Motor Enclosure Type
Open Drip Proof
Sub Application
General Purpose
Drive Type
Belt Drive
Nameplate Service Factor @ 60 Hz
1.15
Insulation Class
B
Frequency
60 Hz
Full Load Current @ 60 Hz
4.8-4.8/2.4 A

Dimensions

Body Dia.
6 1/2 in
Shaft Length
1 7/8 in
Shaft Dia.
5/8 in
Length Less Shaft
11 1/4 in
Shaft Diameter
5/8 in
Body Diameter
6.5 in
Overall Length
13 1/16 in
Frame Size
56H
Wire Rope Length
13 1/16 in
Length
13 1/16 in

Description

Fan and Blower Motor, Three Phase, Motor Design Three-Phase, 1 1/2 hp HP, Nameplate RPM 1,725 RPM, No. of Speeds 1, Voltage 208-230/460V AC, 4.8-4.8/2.4 A Full Load Amps, 56H Frame, 60 Hz Hz, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1.15, Motor Thermal Protection None, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Rigid Base
