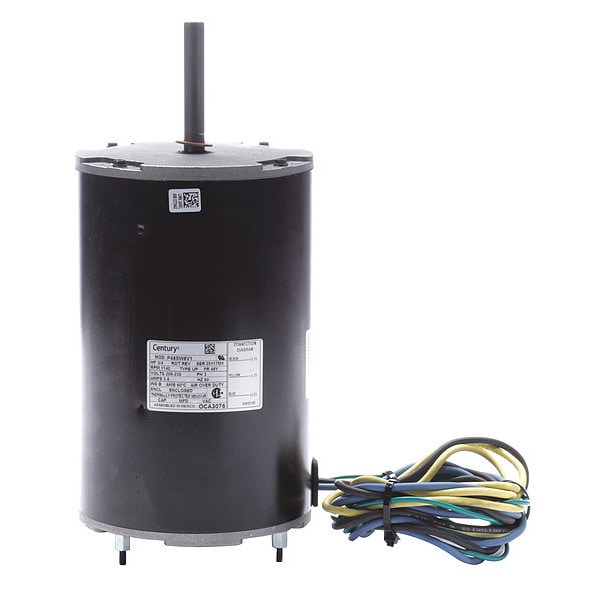

Direct Drive Motor, 3/4 hp
Mfr # OCA3076
Zoro # G2033571
product price: $705.99
/ea
Free Shipping & Returns
Key Features
Motor Design
3-Phase
HP
3/4 hp
RPM Range
1,101-1,200
No. of Speeds
1
Voltage
208-230V AC
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
OCA3076
Zoro #
G2033571
UPC #
-
Country of Origin
Mexico
Dimensions
Shaft Dia.
1/2 in
Body Dia.
5.7 in
Shaft Length
3 in
Length Less Shaft
8 7/8 in
Stud Size
#8-32 X 3/8 in
Bolt Circle Dia.
5 1/8 in
Overall Length
11 7/8 in
Description
Three Phase, Motor Design Three-Phase, 3/4 hp HP, Nameplate RPM 1,140 RPM, No. of Speeds 1, Voltage 208-230V AC, Full Load Amps 3.8 A, 48Y Frame, OEM Replacement Brand Carrier/BDP, Replacement For HD46L230, Usable @ 208V Usable at 208V, Usable @ 200V Not Usable at 200V, 60 Hz, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 60 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Totally Enclosed Air-Over, Motor Mounting Type Stud
