This item is Discontinued.

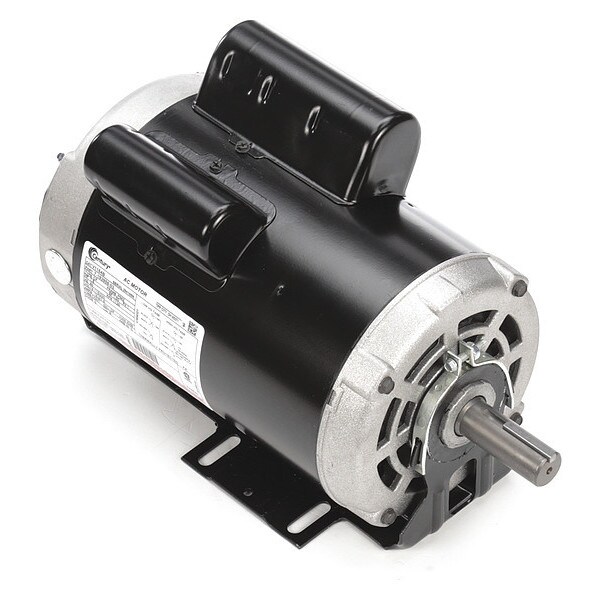

Century Evaporative Cooler Motor, 2-1/4 In. L V1154BV1

Evaporative Cooler Motor, 2-1/4 In. L (Discontinued)

  • Mfr # V1154BV1
  • Zoro # G2156305
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
V1154BV1
Zoro #
G2156305
UPC #
-
Country of Origin
Mexico

Dimensions

Length Less Shaft
11 1/16 in
Ring Dia.
2 1/2 in
Shaft Dia.
7/8 in
Resilient Ring Dia.
2 1/2 in
Shaft Length
2 1/4 in
Overall Length
13 5/16 in
Body Dia.
6 3/4 in

Details

Motor Sub Application
Evaporator Cooler
HP
1-1/2
RPM Range
1,701-1,800
No. of Speeds
1
Phase
Single
Voltage
115/230V AC
Motor Shaft Rotation
CW/CCW
Motor Design
Capacitor-Start/Run
Nameplate RPM
1,725
Frame
56Z
Standards
CSA Certified, UL Recognized
Max. Ambient Temp.
40 Degrees C
Motor Enclosure Design
Open Dripproof
Motor Application
HVAC/R
Ambient Temperature
40 Degrees C
Motor Mounting Type
Cradle Base
Ring to Ring Center
11 in
Motor Thermal Protection
Auto
Item
Evaporative Cooler Motor
Voltage Compatibility
115/200-230V AC, 115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 230V AC, 240V AC
Motor Service Factor
1
Hz
60 Hz
Ins. Class
B
Motor Bearings
Ball
Full Load Amps
14.0/7.0 A
Conduit Box Location
Exterior
Weight
42 lb
Stud Quantity
4
Capacitor Required
Yes
Motor Frame Material
Steel
Motor Shaft Design
Single Special Extension
Duty Cycle
Continuous
Motor Mounting Position
All Angle
Output Watts
1100 W
Usable @ 208V
No
Features
Brass Current Carrying, Continuous Filtration of Oil, Electro Zin Encapsulating Varnish, Heavy Magnet Wire Insulation, Single and Two Speed
Usable @ 200V
No
Conduit Box Position
F3

Description

Evaporative Cooler Motor, Single Phase, Motor Design Capacitor-Start/Run, 1-1/2 HP, Nameplate RPM 1,725, No. of Speeds 1, Voltage 115/230V AC, 14.0/7.0 A Full Load Amps, 56Z Frame, Output Watts 1100 W, 60 Hz Hz, Usable @ 208V No, Usable @ 200V No, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Duty Cycle Continuous, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CW/CCW, Motor Enclosure Design Open Dripproof, Motor Mounting Type Cradle Base, Motor Frame Material Steel
