Shop CENTURY

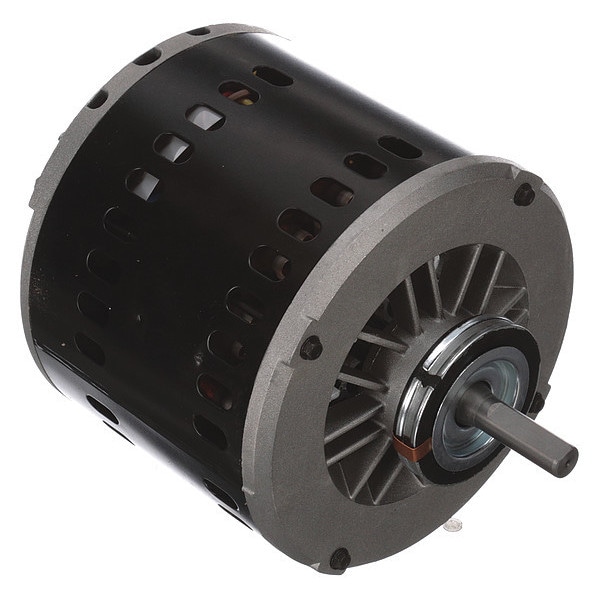

Evaporative Cooler Motor

  • Mfr # SVB2034V1

  • Zoro # G1221911

product price:  $224.99
/ea
Free Shipping & Returns

Key Features

Voltage
115V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
1/3, 1/10
Full Load Amps
6.9/4.0 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SVB2034V1
Zoro #
G1221911
UPC #
-
Country of Origin
China

Dimensions

Overall Length
9 7/16 in
Shaft Dia.
1/2 in
Resilient Ring Dia.
2 1/2 in
Length Less Shaft
7 15/16 in
Shaft Length
1 1/2 in
Ring Dia.
2 1/2 in
Frame Size
56Z
Resilient Ring Diameter
2 1/2 in
Shaft Diameter
1/2 in
Body Diameter
6.4 in

Details

Item
Evaporative Cooler Motor
Voltage
115V AC
Motor Enclosure Design
Open Dripproof
RPM Range
1,701-1,800
HP
1/3, 1/10
Full Load Amps
6.9/4.0 A
Phase
Single
Motor Thermal Protection
Auto
Motor Design
Split-Phase
Hz
60 Hz
No. of Speeds
2
Frame
56Z
Motor Application
HVAC/R
Nameplate RPM
1,725/1,140
Max. Ambient Temp.
40 Degrees C
Motor Shaft Rotation
CCWLE
Motor Service Factor
1
Ins. Class
B
Ambient Temperature
40 Degrees C
Motor Bearings
Ball
Motor Sub Application
Evaporator Cooler
Motor Mounting Type
Ring
Standards
CSA, UL
Ring to Ring Center
7 7/16 in
Voltage Compatibility
115/208-230V AC, 115/230V AC, 115V AC, 120/240V AC, 120V AC
Includes
Hardware, Switch Parts
Usable @ 200V
Not Usable at 200V
Features
Moisture Resistant
Motor Mounting Position
All Angle
Finish
Varnish
Usable @ 208V
Not Usable at 208V
Number of Speeds
2
Capacitor Required
Capacitor Not Required
Insulation Class
B
Wattage
250 W
Motor Enclosure Type
Open Drip Proof
Full Load Current @ 60 Hz
6.9/4.0 A
Nameplate Service Factor @ 60 Hz
1
Frame Material
Steel
Application
Evaporative Cooler
Drive Type
Direct Drive
Efficiency Rating
Standard Efficiency (IE1)
Product Type
Evaporative Cooler Motor
Sub Application
Evaporative Cooler
Frequency
60 Hz
Ambient Temperature - Maximum
40 Degrees C

Description

Evaporative Cooler Motor, Single Phase, Motor Design Split-Phase, 1/10 hp, 1/3 hp HP, Nameplate RPM 1,725/1,140 RPM, No. of Speeds 2, Voltage 115V AC, 6.9/4.0 A Full Load Amps, 56Z Frame, Output Watts 250 W, 60 Hz Hz, Usable @ 208V Not Usable at 208V, Usable @ 200V Not Usable at 200V, Motor Service Factor 1, Motor Thermal Protection Auto, Ins. Class B, Max. Ambient Temp. 40 Degrees C, Motor Shaft Rotation CCWLE, Motor Enclosure Design Open Drip Proof, Motor Mounting Type Resilient Ring
