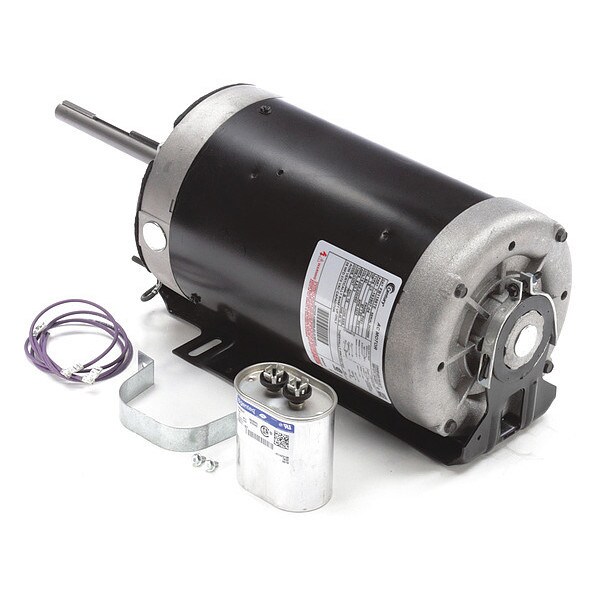

Fan Motor, 1-1/2 HP, 1075 rpm, 60Hz

CENTURY| Zoro #: G1021657| Mfr #: FB1156TE

$312.00 /ea

qty
This item ships free. Details.Standard ground shipping.
Details:
Ins. Class: B
Voltage: 208-230/460
Motor Mounting Type: Cradle Base
Save 15%. Sign up for Z-mail.

Specifications

Zoro #: G1021657 Mfr #: FB1156TE
Ins. Class: BVoltage: 208-230/460
Motor Mounting Type: Cradle BaseVoltage Compatibility: 208, 230, 240, 460, 208-220/440, 208-230, 208-230/460, 208-240, 220/460, 220-230/460, 230/460
Stud Size: 10-32 x 1-1/4"Capacitor Required: Included
Resilient Ring Dia.: 2-1/2"Frame: 56Y
Phase: 1Motor Thermal Protection: Auto
Motor Application: HVAC/RHP: 1-1/2
Item: Condenser Fan MotorMotor Mounting Position: All Angle
Features: Internal Conduit Box for Enclosed Wiring ConnectionMotor Shaft Rotation: CW/CCW
Motor Shaft Design: Keyed with Single FlatNameplate RPM: 1075
No. of Speeds: 1Stud Quantity: 4
Overall Length: 17-5/16"Duty: Continuous
Motor Service Factor: 1.00Mounting Stud Pattern: 4-1/8" x 4-1/8"
Motor Enclosure Design: Totally Enclosed Air-OverMax. Ambient Temp.: 40 Degrees C
RPM Range: 1001-1100Hz: 60
Motor Bearings: BallShaft Dia.: 5/8"
Shaft Length: 6"Nominal Efficiency: 75.0%
Length Less Shaft: 11-5/16"Motor Design: Permanent Split Capacitor
Body Dia.: 6-1/2"Motor Sub Application: Condenser Fan
Ring to Ring Center: 11-5/8"Full Load Amps: 6.6-6.6/3.3
Standards: UL Recognized (E46412/E44549), CSA Certified (LR43341/LR4642)Country of Origin (subject to change): Mexico

Description

Condenser Fan Motor,Motor Design Permanent Split Capacitor,Motor Enclosure Design Totally Enclosed Air-Over,1-1/2 HP,RPM Range 1001-1100,Nameplate RPM 1075,Voltage 208-230/460,56Y Frame,Number of Speeds 1,Overall Length 17-5/16 In.,Shaft Length 6 In.,Shaft Orientation All Angle,Features Internal Conduit Box for Enclosed Wiring Connection,Motor Shaft Rotation CW/CCW,Full Load Amps 6.6-6.6/3.3,Cradle Base Motor Mounting Type,Thermal Protection Auto,Insulation Class B
